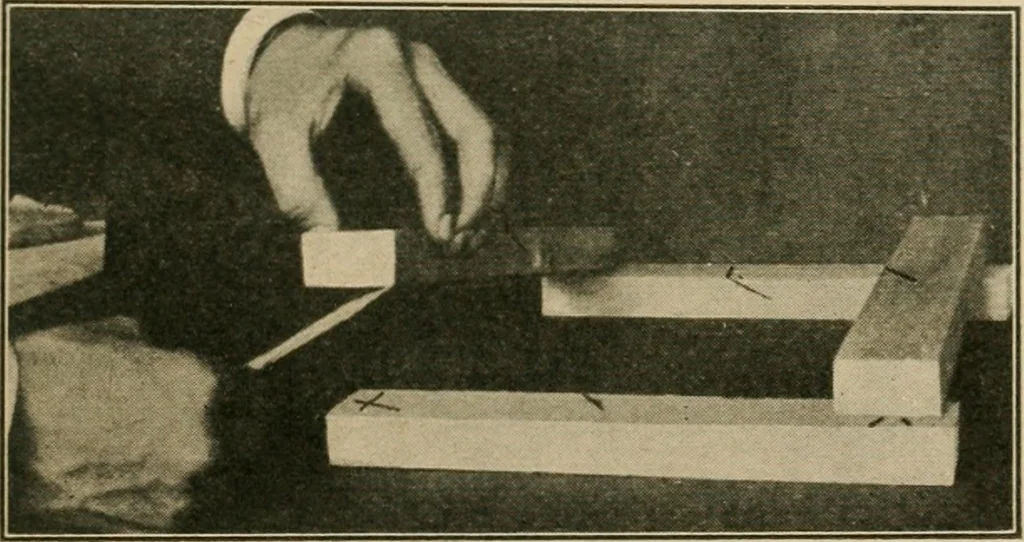

ere are only two of each length, it should not be necessary to clamp Fig. 227. Frame them. Lay off the gains at each end, and draw lines halfway across each edge. Set the gauge to near the center, and gauge each end, also gauge across the ends and on each side the length of the gain. The ends are… … 234 ELEMENTARY CABINETWORK sidewise; and third, to force the broad surfacestogether. In Fig. 229 the clamps beneath holdendwise, those on top sidewise, and the four woodenhandscrews and the two iron clamps hold the broadsurfaces together. Care must be taken not to set thebar clamps too tight, for…
