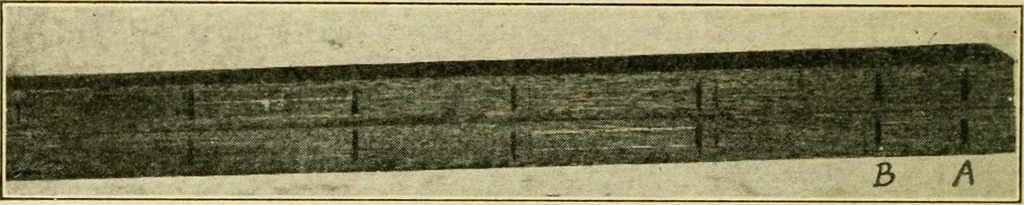

theback shoulder would be J inch, the same as the oneat the front side. Mortises for Chair Backs. In Fig. 2 is shown howthe two long sides, or stiles, of the back of a largearmchair are laid side by side, face edge up, andwith the face surfaces together or both outside. Ifone were outside and the… … FiG. 2. Stiles—side by side for lining pense with the clamp unless you have more than twopieces to hold at the same time. Measure all of the pieces to see how much wastematerial may be cut off, and leave about half of thi;swaste at each end.
