Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 25

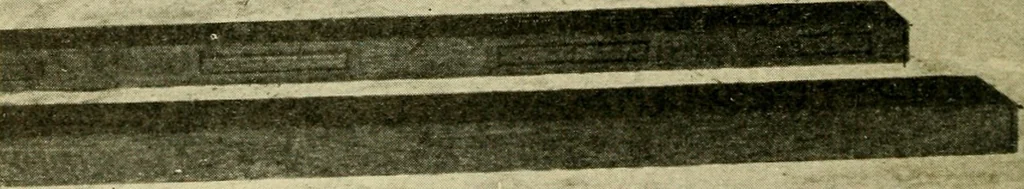

FiG. 2. Stiles—side by side for lining pense with the clamp unless you have more than twopieces to hold at the same time. Measure all of the pieces to see how much wastematerial may be cut off, and leave about half of thi;swaste at each end. … Fig. 3. Stiles—flat, showing face marks Before marking the length of the mortises, exam-ine the short pieces, or rails, to see whether anychange in the size of the tenon is required. Noticethe difference in the location and size of the mor-tises at the top and bottom ends (Fig. 5, A and B).This is…
Cabinetwork
