Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 267

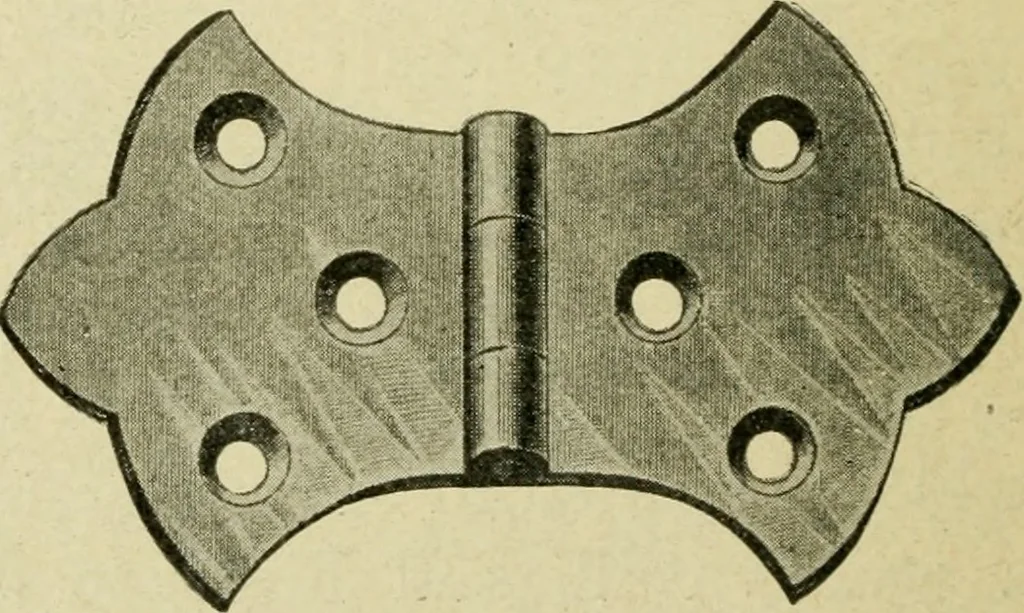

hown in Fig. 271. Do this on either the door or jamb but not on both. Then with knife and try-square draw lines through these points out to the edge (Fig. 272 AA). Also draw lines down the edge to connect with the gauge line B when it is drawn. Next, set the gauge to the center of the space (Fig.… … Fig. 268. Surface hinge TOOLS AND MATERIALS 261
