Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 268

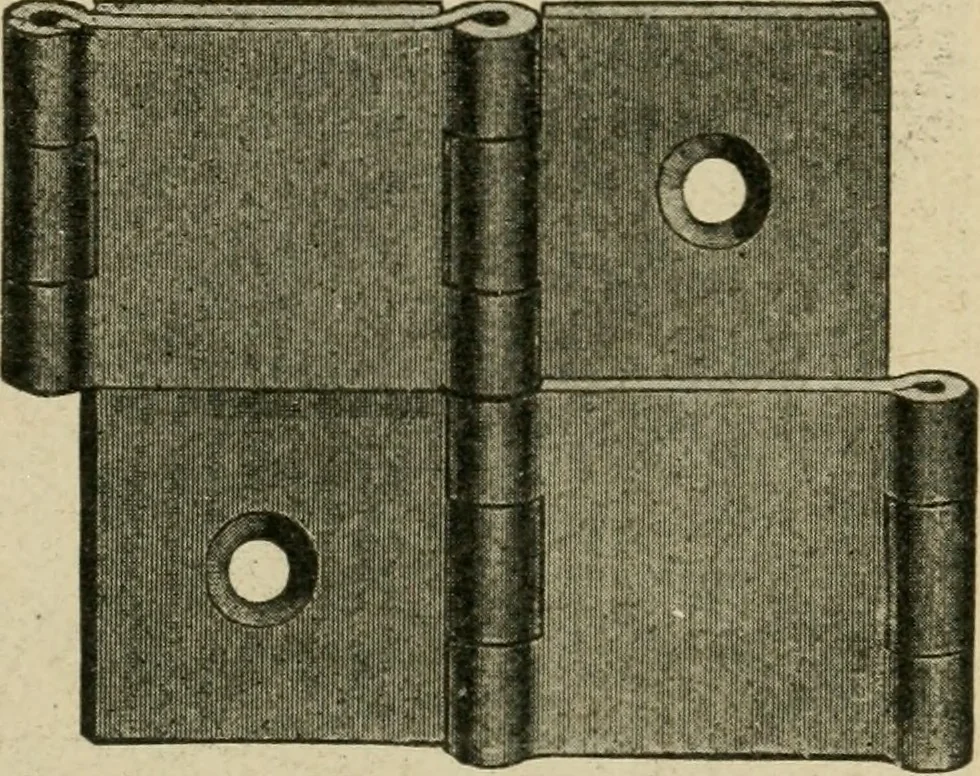

Fig. 268. Surface hinge TOOLS AND MATERIALS 261 … tightly. If the place for the hinge is too deep, the doorwill not close freely, and is said to be hinge bound.If the space is not deep enough, there will be aspace between thedoor stile and theframe jamb or casing.The next step is toset the gauge for theinner edge (Fig. 272C). This space…
Cabinetwork
