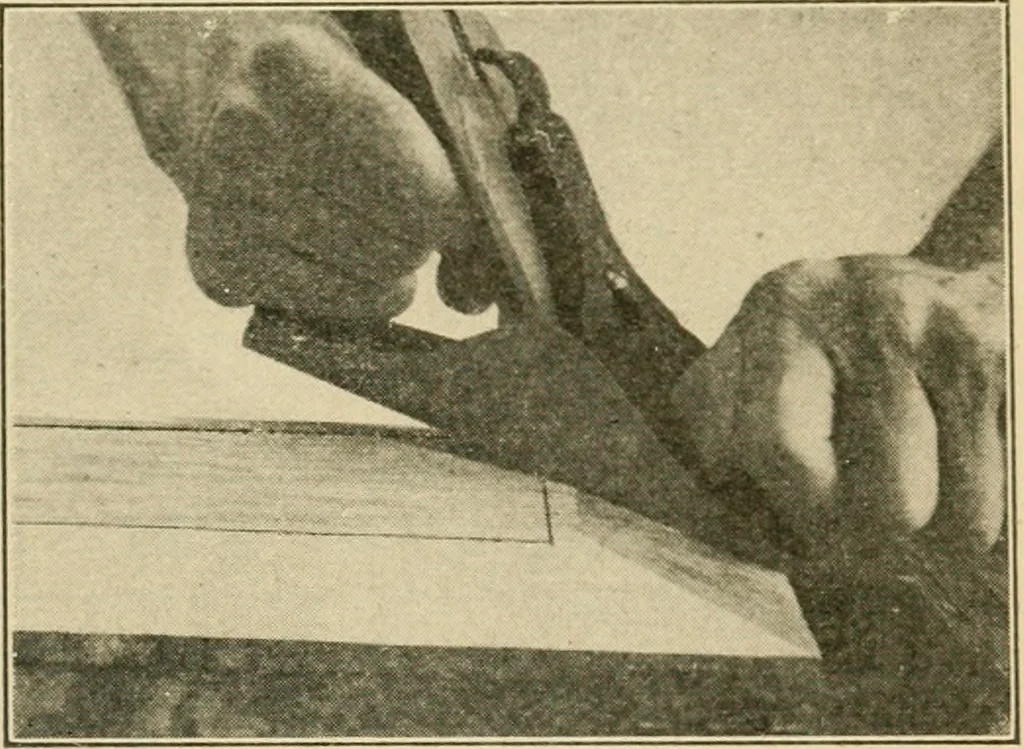

ii^* Fig. 36. Raised panel If there is any likelihood of the panel swelling, aspace must be left at the sides between it and thebottom of the grooves and at the edge of the stiles.No space need be left at the ends, as the panel willnot swell endwise. PANELING 51 … Raised Panel. In making a raised panel (Fig. 36),the piece is first dressed to the thickness of thethickest part of the panel, and then the centralraised portion islaid out with apencil. The thick-ness at the edge ismarked with agauge, and theouter portion plan-ed to an even taperto the edges,…
