Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 61

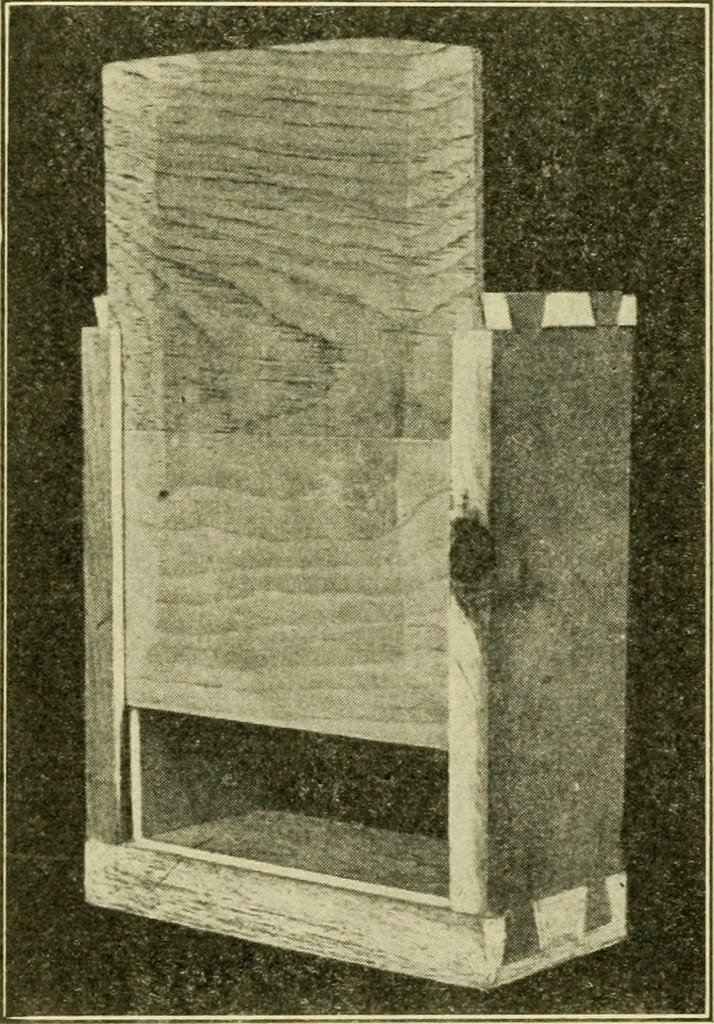

isnot too much spaceat the top edgebetween the drawerfront and the uppercross rail. This maybe reduced one-half ateach end of the front.The Sides. Next after the front, get out the sidesand back end. Glue together the pieces for thebottom so they will be ready when needed. Make the groove for the… … Fig. 41. Inserting drawer bottom THE MAKING OF DRAWERS 55 The Bottom. After the sides and ends are together,smooth the bottom and slide it to place by shovingit into the grooves from beneath the back end (Fig.41). After it is in place, drive a nail up through theback end of the bottom into the back…
Cabinetwork
