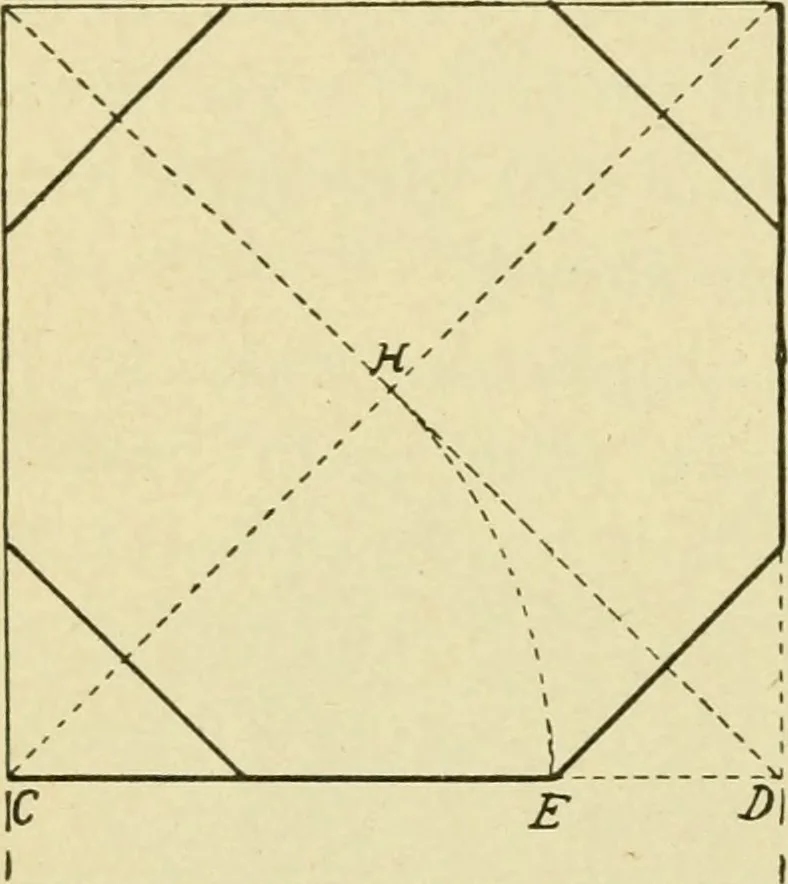

1 is shown how this may be accomplished. 66 ELEMENTARY CABINETWORK Octagonal Top. Taborets and tables may some-times have octagonal or hexagonal tops. The octagonal top is made in the same manner^ - ^ as a square top, except that, after both surfacesare finished and bothends and edges squared,the… … L L Fig. 52. Laying out an octagon point—the space D-E—and from each corner drawa gauge line across the edge of each side {L-L).These gauge lines should be pencil lines. Drawknife lines on both top and bottom surfaces con-necting these lines. Saw off the corners and plane to the lines.Usually…
