Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 97

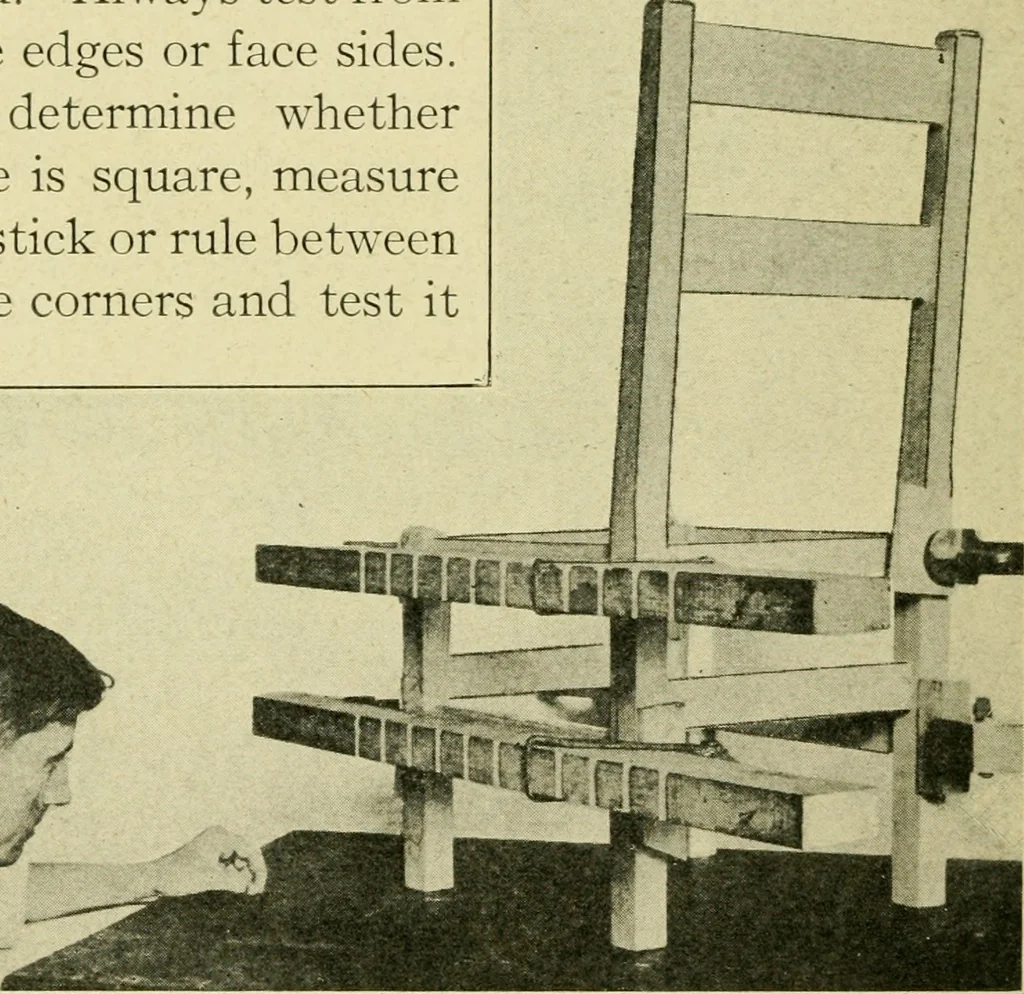

Fig. 6g. Looking for wind. (5^^ Fig. 184.) 90 ELEMENTARY CABINETWORK all sides in every piece (Figs. 69 and 70). Ifpiece is irregular or the face surfaces obscured,straight edges or the blades of framing squaresthe piece to assist in testingfor wind. Always test fromthe face edges or face sides.To… … Fig. Looking for wind. {Sec ¥iG. 184.) with the try-square and framing-square. Be par-ticular about having the parts rest firmly on thebench so that they will not spring out of place whileleft to dry. A few wedges or blocks beneath theclamps will sometimes save a great deal of twistingand…
Cabinetwork
