Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 99

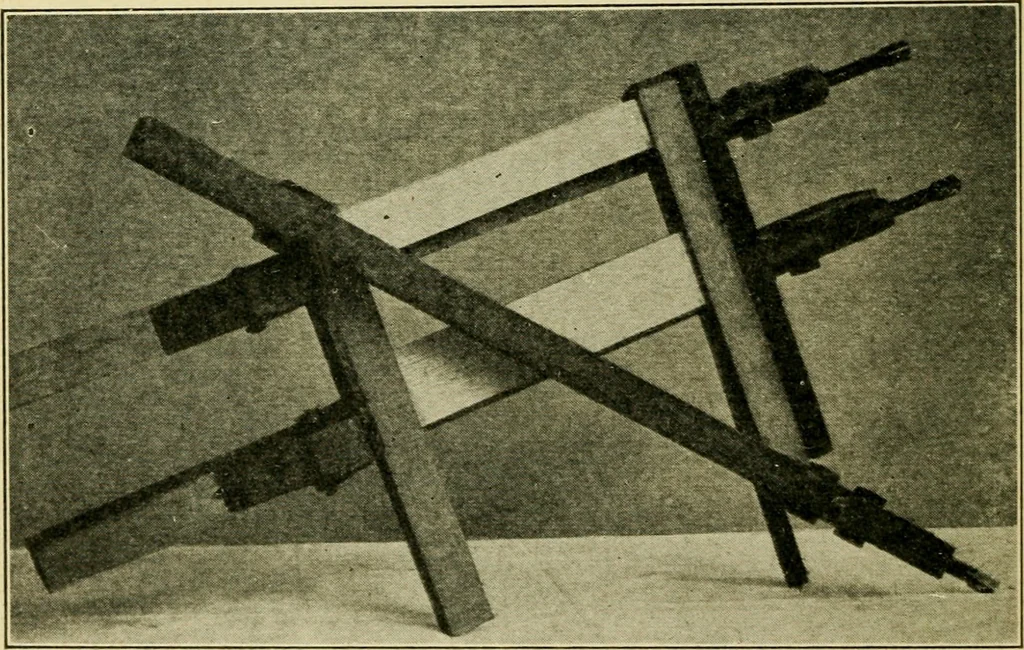

Fig. 73. Clamping arm of large chair is not only to keep the clamps from jamming thesurface, but also to keep them from splitting the arm.In such places, one block or strip should be used … Fig. 74. Diagonal clamp for both clamp jaws instead of a block under eachjaw. Fig. 112 shows a similar case. CLAMPING 93 Diagonal Clamps. Fig. 74 illustrates the use ofdiagonal clamps. The same result often may beobtained by placing the clamps at an angle, asshown on the side in Fig. 75. This draws…
Cabinetwork
