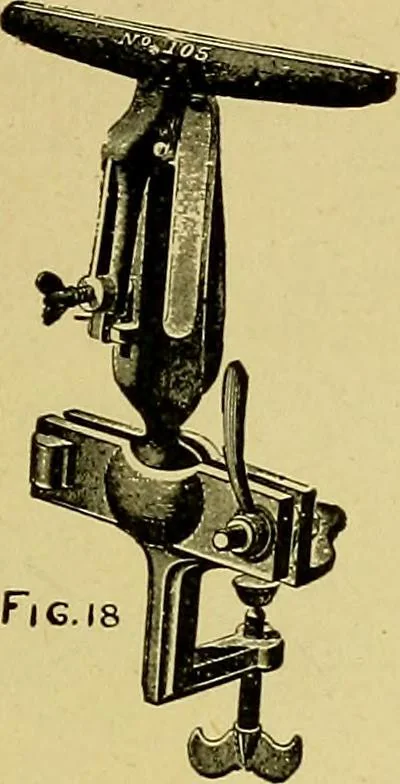

two pieces of board,6 inches wide, andone 2 feet 4 inches long and 6 inches wide. By fast- ELEMENTARY COURSE IN WOODWORK. 19 ening a piece 2^ inches thick about 10 inches from thetop of each, to act as a fulcrum, and fastening a piece … Fig. 19. Fig. is r\ - - ii !■! i i- ■ m ii m~m—<—Mm| on each board at the top to act as jaws, and using awedge at the bottom to tighten it up, a very service-able vise is obtained (see Fig. 19). To assist those not skilled in the art of filing, thereis made a saw-filing clamp with a guide, of…
