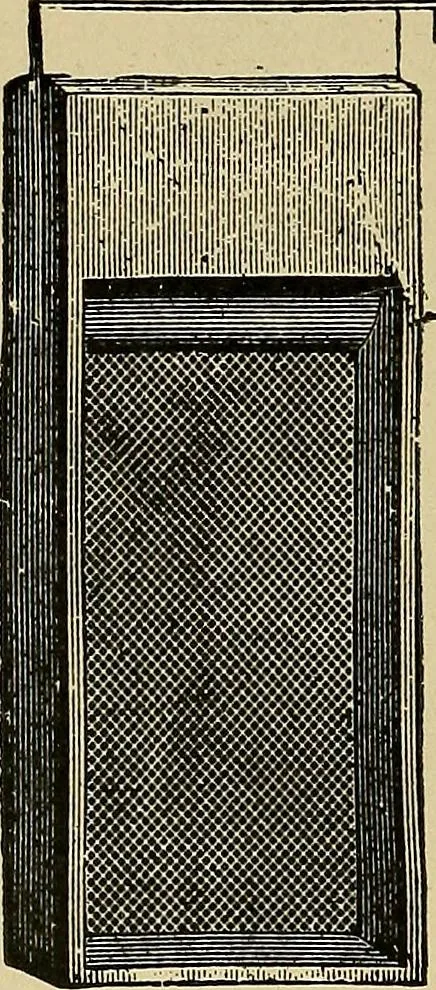

ne marked. Hold the cross-cut saw as inFig. 30. After having cut the piece from the plank take thejack-plane and put it in good condition for work. Asectional view of the Bailey Iron Plane is shown in Fig.31, and the parts are as follows: A—Plane Iron. B—Cap Iron. 30 ELEMENTARY COURSE IN WOODWORK.… … M|M« MIIIT 3 12 TT M Fl g. a a. G— Lever which is in contact with Plane-Iron. H—Screw which holds the iron bed piece in place. I—Bed piece. K—Lever. The plane-iron should be ground on the grindstoneif nicked or rounded. To grind the plane-iron it should be held in the handas shown in Fig. 32. Apply…
