Elementary course in woodwork ; designed for use in high and technical schools, with one hundred and thirty-four illustrations, by George Alexander Ross (1901)
Ross, George Alexander · Chicago, New York, A. Flanagan Company · leaf 39

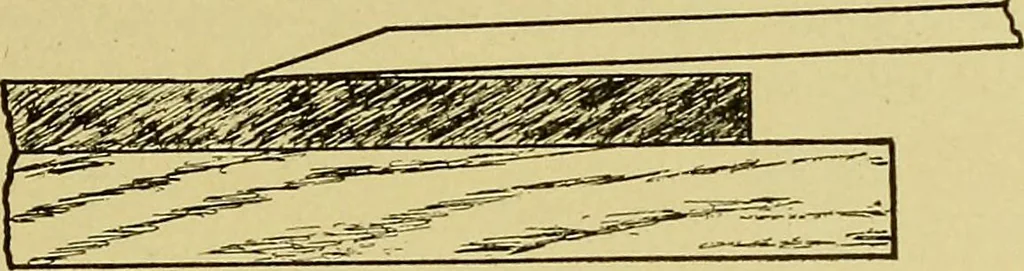

d the iron will not be any sharper than itwould be if it were in the form shown in Fig. 39. ELEMENTARY COURSE IN WOODAYORK. 35 After having whetted the bevel side of the iron suffi-ciently, turn the iron so that it will rest perfectly flat on the stone, as shown at 3, /=— j Fig. 36, and whet it in… … Ft& 40. The iron is now sharpened. Replace the cap-iron,keeping it back from 1-64 to 1-32 of an inch from thecutting edge; then place it in position and fasten it;look down the face of the plane and see that the edgeprotrudes far enough to cut therequired thickness. The ad-justments are made by…
Woodwork (Manual training)
