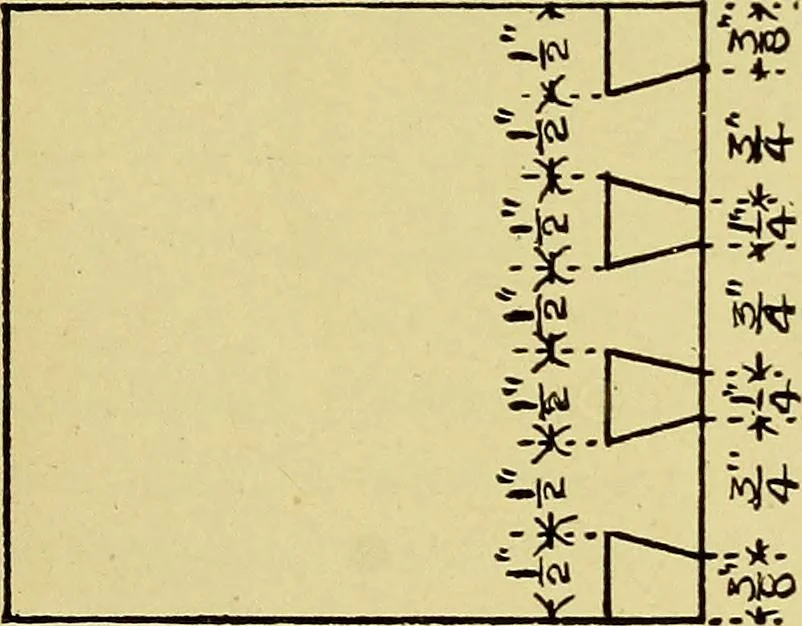

Fig. ioo. ELEMENTARY COURSE IN WOODWORK. 75 has to be left; and further, if well executed, the dove-tails are, by the very nature of the work, concealed in-ternally. Fig. 100 shows a variation of the common dovetail, r tf I i i 4. *j … ,-.. t — i | •I. 1 Fig. i oi, used in attaching the fronts of drawers to the sides,and for similar purposes. In Fig. 101 is given the working drawing of thecommon dovetail, and Fig. 102, A-B shows the detailsof each piece. 76 ELEMENTARY COURSE IN WOODWORK. The stock can be prepared in one piece…
