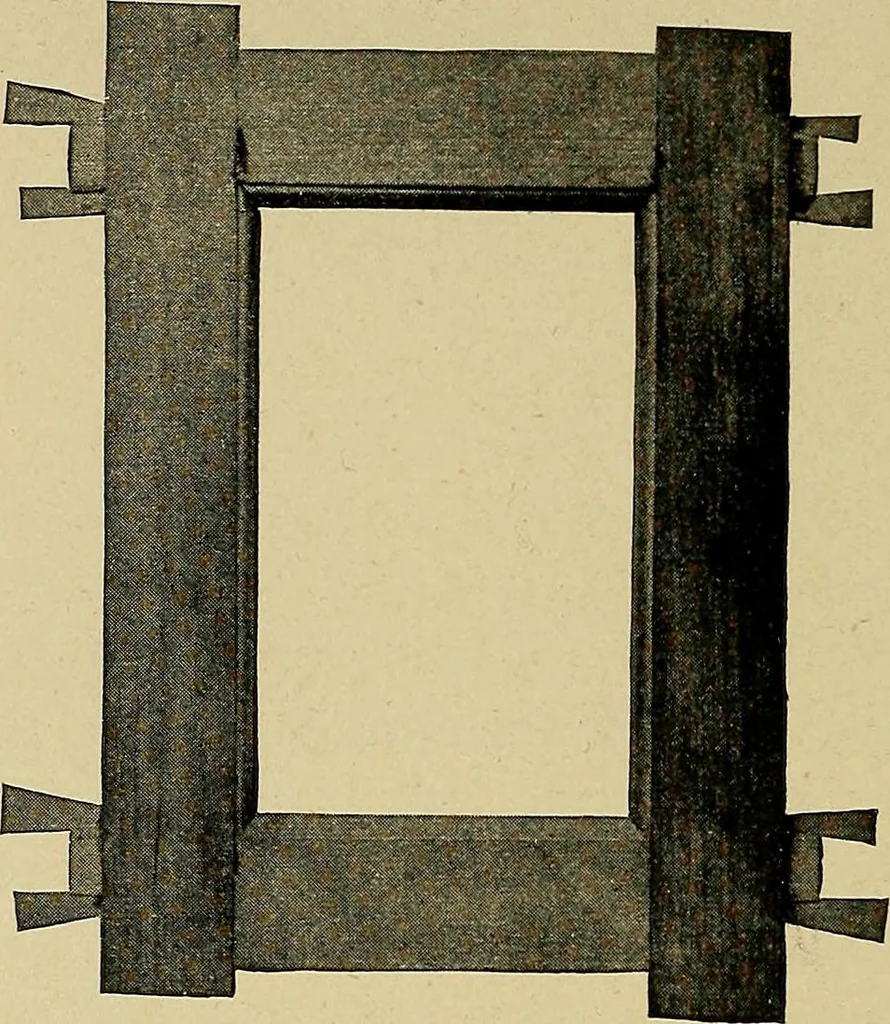

86 ELEMENTARY COURSE IN WOODWORK. wedges in glue and drive them between the endsof the mortise and the edges of the tenon; re-move the clamps and let the glue set before smooth-ing the sides of the work. The door, when thewedges are driven and clamps removed, will look asshown in Fig. 111. … Fig. 111. The ends of the tenons and horns are sawed off andthe edges planed. (The gouge, Fig. 109, has a bladethat is curved in its section the whole length; gougesare of different sweeps. The bevel which is groundon the cutting edge may be on the concave or theconvex side; and according to this…
