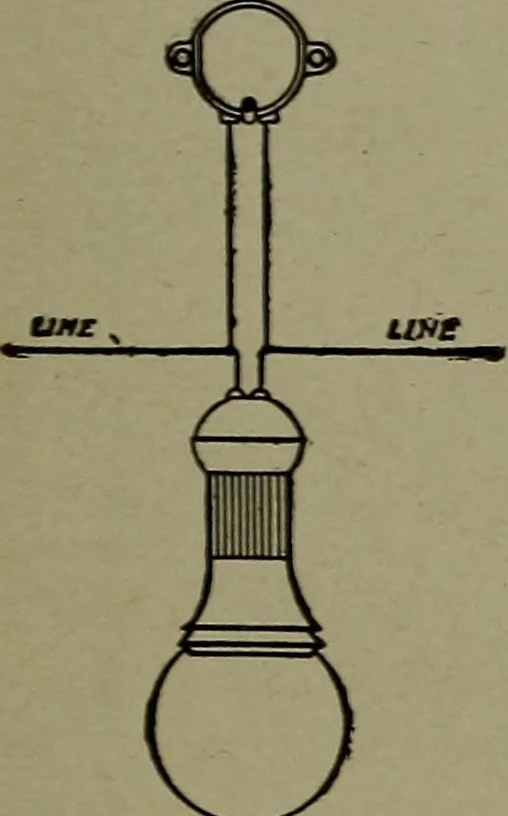

me shouldbe connected in a shunt path to earth as shown in Fig. 42. As an arc lamp protector it is connected directly across Lightning arresters—low voltage ll3 the terminals of the lamp as shown in Fig. 43, thus offer-ing a path around the lamp, to the standard polearresters, which should be… … Diagram °f Connections GA RTON —DAMI ELSUCHTSISG ARRESTERS TYPE T. N? 30O EOK ALT. CURRENT SERIES ARC LAMPS UP TO 3SO VOLTS CARTON-DANIELS COMPANY. KEOKUKKWA.UJJL Fig. 43. It has been customary in many cases to use standardforms of arresters in the same service for which this de-vice is designed.…
