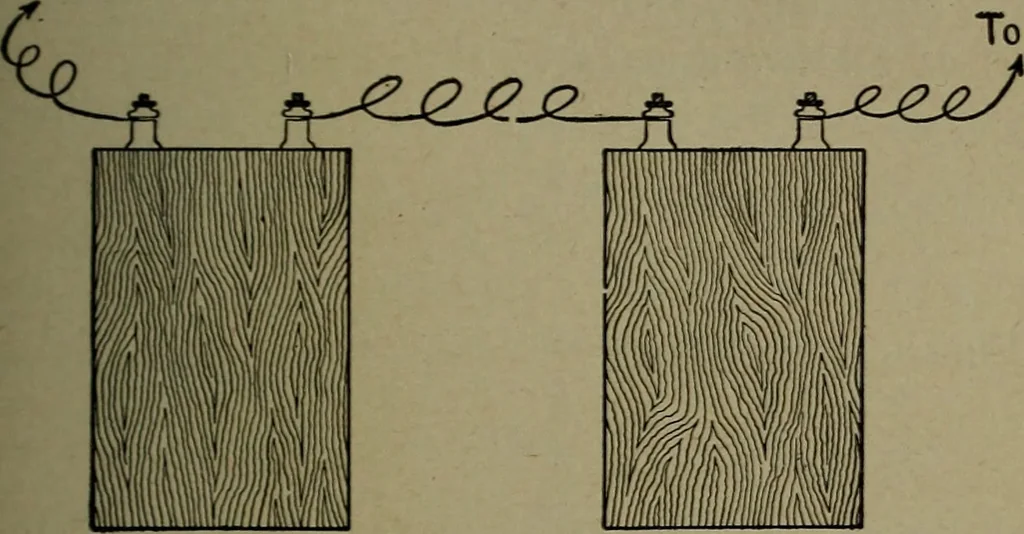

estion 27. How can two condensers be used as onelarge condenser? Answer. As in Fig. 14, connect a wire from one bind-ing post of the first condenser to either binding post ofthe other condenser. Connect the other two posts by awire. Connect the wires of the circuit, one to each ofthe wires joining… … To Circuit Fig. 16. Two Condensers in Series. Question 28. What is the actual capacity of two con-densers connected in parallel ? Answer. The capacity of this arrangement is thesum of the two capacities. < A- -*—Mr-H K, K, Pig. 17. Diagram of Two Condensers in Series. K, is supposed to have a…
