Elementary lectures on electric discharges, waves and impulses, and other transients (1914)
Steinmetz, Charles Proteus, 1865-1923 · New York, London, McGraw-Hill book co., inc. · leaf 125

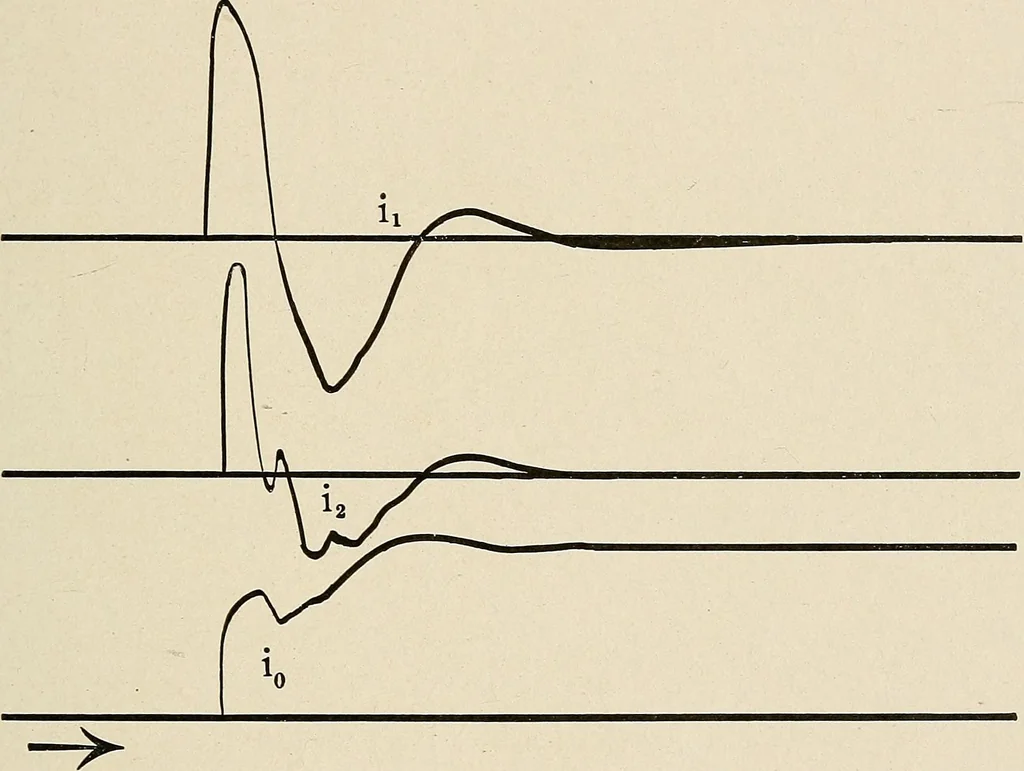

from Open End of Line. Voltage. T HAVE LING WAViES. lot give no reflection. The upper curve shows the voltage of theimpulse at the beginning, the middle curve in the middle, and thelower curve at the end of the line. Fig. 52 gives the same three voltages, with the line open at theend. This… … Fig. 53. — CD11153. — Reproduction of Oscillogram of Propagation of Im-pulse Over Transmission Line; Reflection from Open End of Line.Current, Fig. 53 gives the current impulses at the beginning and the mid-dle of the line, corresponding to the voltage impulses in Fig. 52,together with the primary…
