Elementary lectures on electric discharges, waves and impulses, and other transients (1914)
Steinmetz, Charles Proteus, 1865-1923 · New York, London, McGraw-Hill book co., inc. · leaf 29

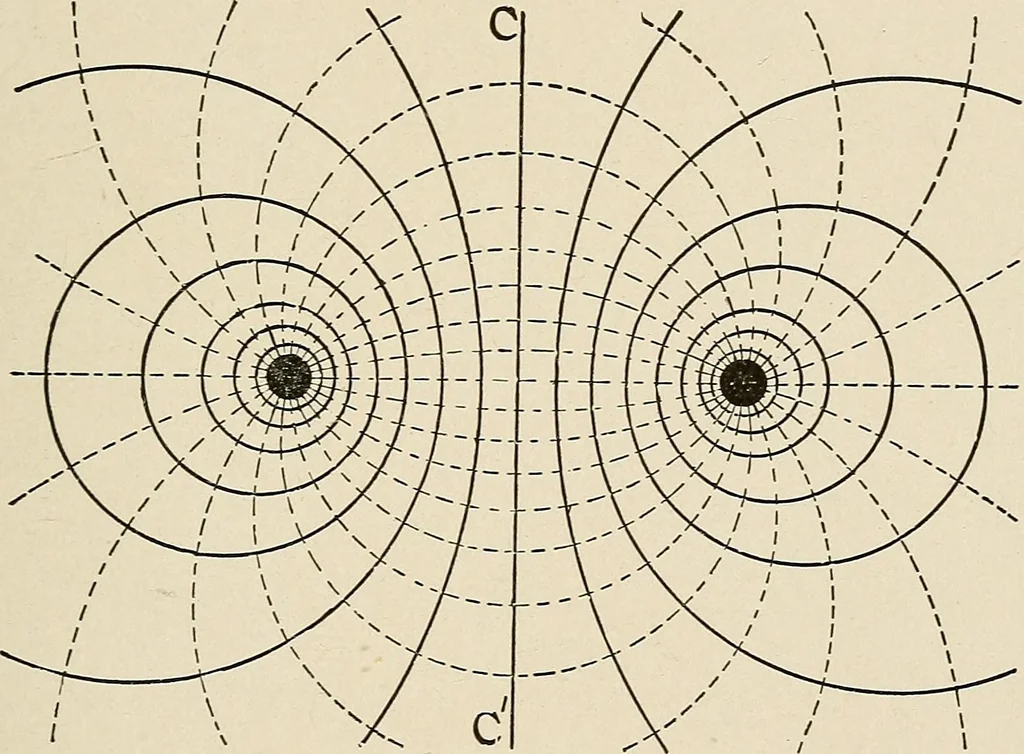

n Fig. 9. An electrostatic, or, as more properly called, dielectric field, issuesfrom the conductors, that is, a dielectric flux passes between theconductors, which is measured by the number of lines of dielectricforce ^. With a single conductor, the lines of dielectric force areradial straight… … Fig. 9. — Electric Field of Circuit. The magnetic and the dielectric field of the conductors both areincluded in the term electric field, and are the two components ofthe electric field of the conductor. 8. The magnetic field or magnetic flux of the circuit, $, is pro-portional to the current, i,…
Electricity · Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
