Elementary lessons in electricity and magnetism (1906)
Thompson, Silvanus P. (Silvanus Phillips), 1851-1916, Schwetzky, Otto H. L. [from old catalog] · Chicago, Thompson & Thomas · leaf 345

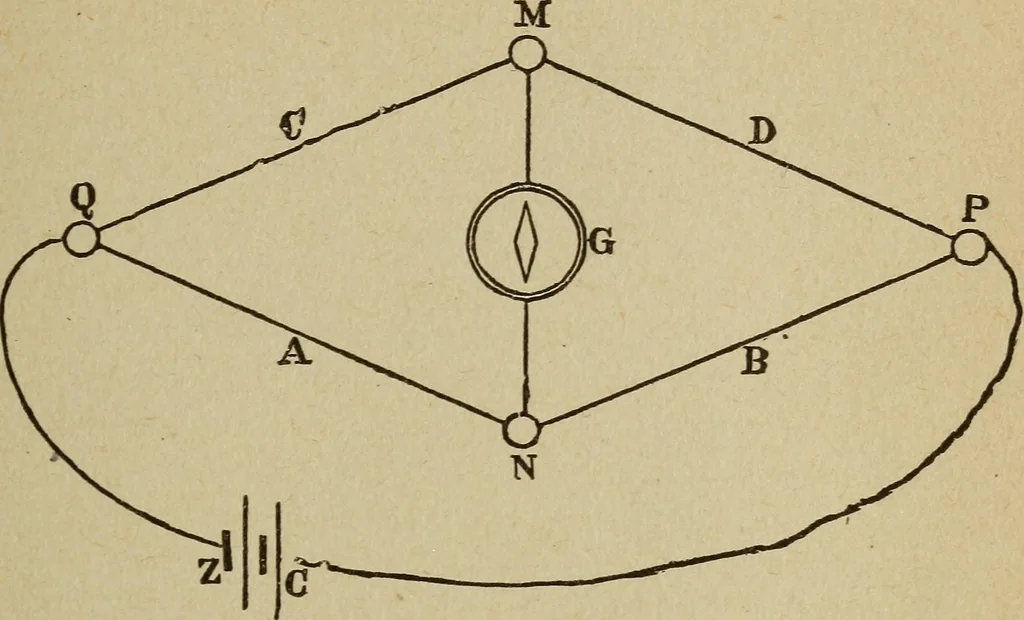

resistances that the resistanceof one of them can be calculated when the resistances ofthe other three are known. When the current whichstarts from C at the battery arrives at P, the potentialwill have fallen to a certain value. The potential of thecurrent in the upper branch falls again to M,… … Fig. 130. along the resistances between P and Q, as M is alongthe resistances of the upper line between P and Q, thepotential will have fallen at N to the same value as ithas fallen to at M ; or, in other words, if the ratio of theresistance C to the resistance D be equal to the ratiobetween the…
Electricity · Magnetism
