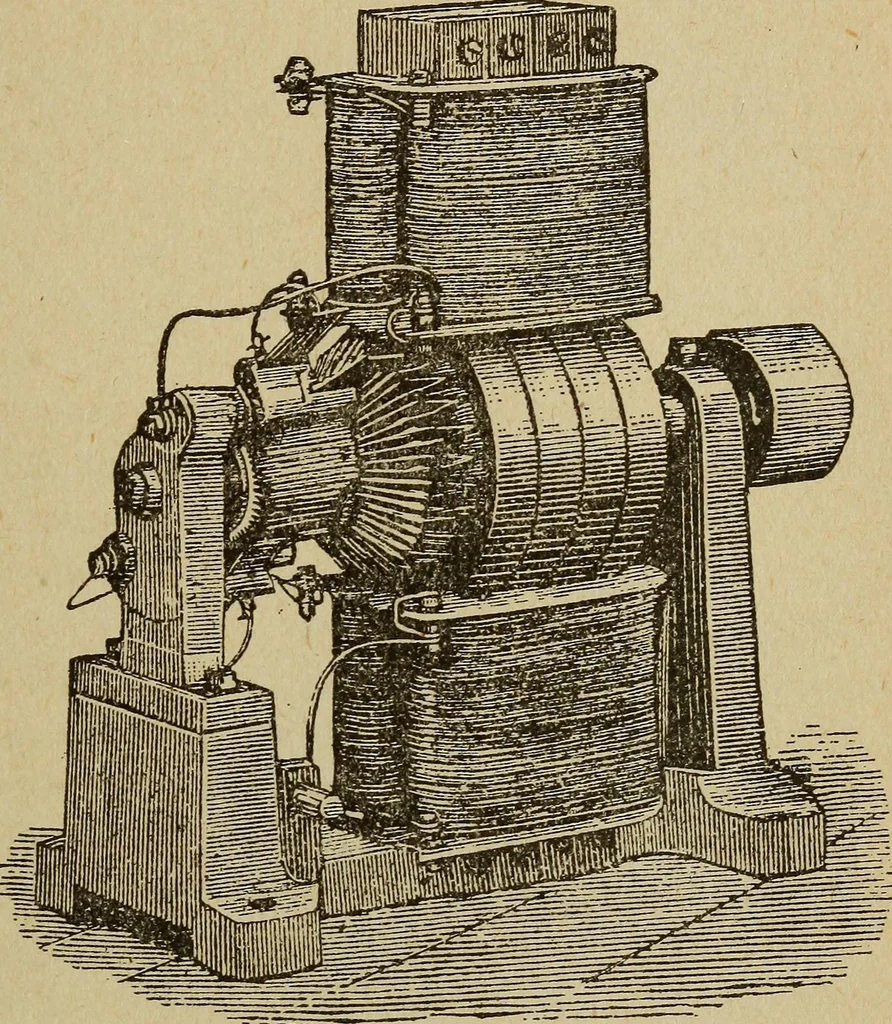

insulating rnaterial, may beregarded as a split-tube. The current cannot pass fromone segment to the next without traversing one ofthe fifty-six coils of the armature ; and, as the end ofone coil and the beginning of the next are both con-nected to the same commutator bar, there is a… … Fig, 151. above and below, and so lead away into the circuit thecurrent generated in the coils of the rotating armature.Suppose the lines-of-force in the field to run from rightto left,^ and the armature to rotate left-handedly, as seenin Fig. 151, then, by the rule given in Art. 395, in all 1…
