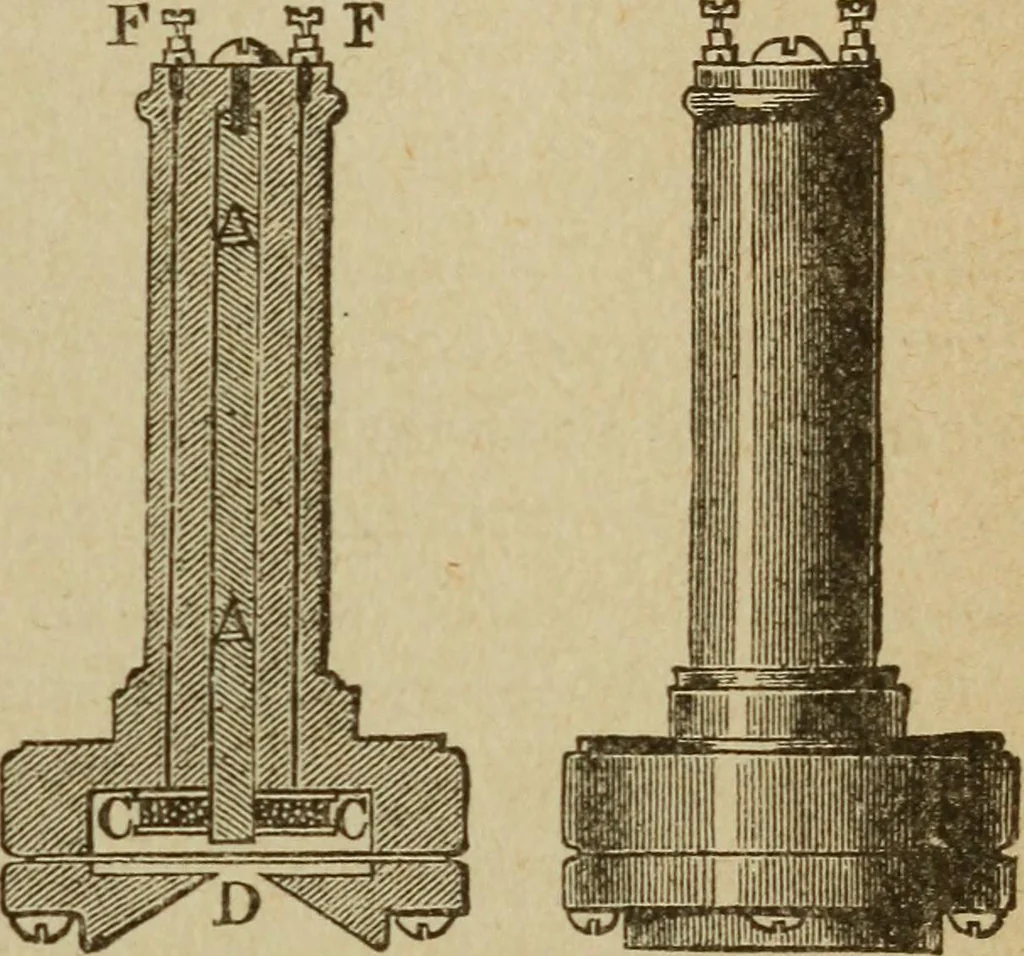

ded, for thetransmitting instrument itself generates the inducedcurrents as follows : The magnet AA induces a certainnumber of lines-of-force through the coil C. Many ofthese pass into the iron disc. When the iron disc invibrating moves towards the magnet-pole, more Hnes-dfforce meet it; when it… … Fig. 168. 4i6 ELEMENTARY LESSONS ON [chap. xii. the coils currents whose strength is proportional to therate of change in the number of the lines-of-force whichpass through the coil. Bells telephone, when used asa transmitter, may therefore be regarded as a sort ofmagneto-electric generator, which,…
