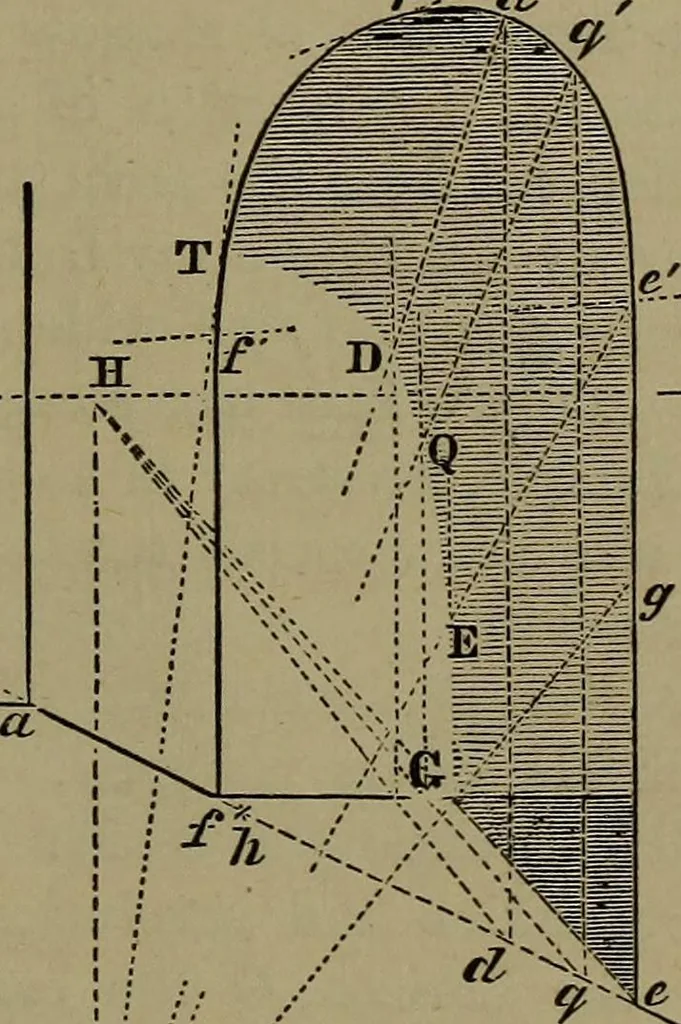

lineof the figure. Second. To find the shadow in the archway, Fig. 57. Thisshadow is in four parts; first, the shadow of the edge ee upon thefloor; second, thnt of the same edge on the wall Qnff ; third, thatof the curve epf on the same wall; and fourth, that of the samecurve upon the cylindrical… … F O Fig. 57.the horizontal trace of a vertical plane of rays through ee\ and eGis the shadow of this edge on the floor. By drawing the ray RG,and producing it to g, we learn that eg is the precise portion of ee!which casts a shadow on the floor. From G, the shadow of ge ia 104 LINEAR PERSPECTIVii:.…
