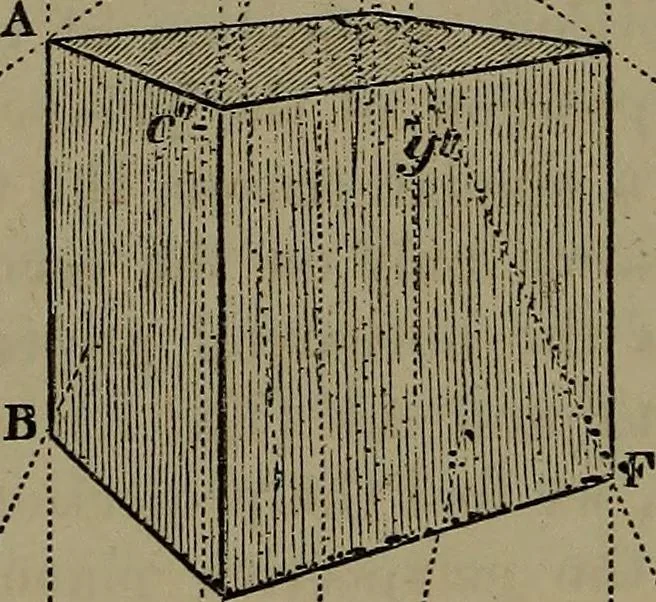

nly, to oneside in a directionparallel to theground line, andthen find their per-spectives, as B (notshown) which willbe well defined.Then a parallel tothe ground line,through B, will in-tersect either 6E,or AB, giving B bya well defined in-tersection. Observethat E,E is notmoved. Remark. —… … Ql Z^/ • 5 • Fig. 19. § II. Second Method. Use of three Planes, 72. The confusion of the diagrams, arising from the confoundingtogether of the perspective with either or both of the projections REMOVAL OF PRACTICAL DIFFICULTIES. 36 of the given object, may be still further avoided by making…
