Elementary linear perspective of form and shadow ... Complete in itself ... For draftsmen, artists, and industrial drawing courses in preparatory and high schools, etc. In two parts.. (1891)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York, J. Wiley & sons · leaf 49

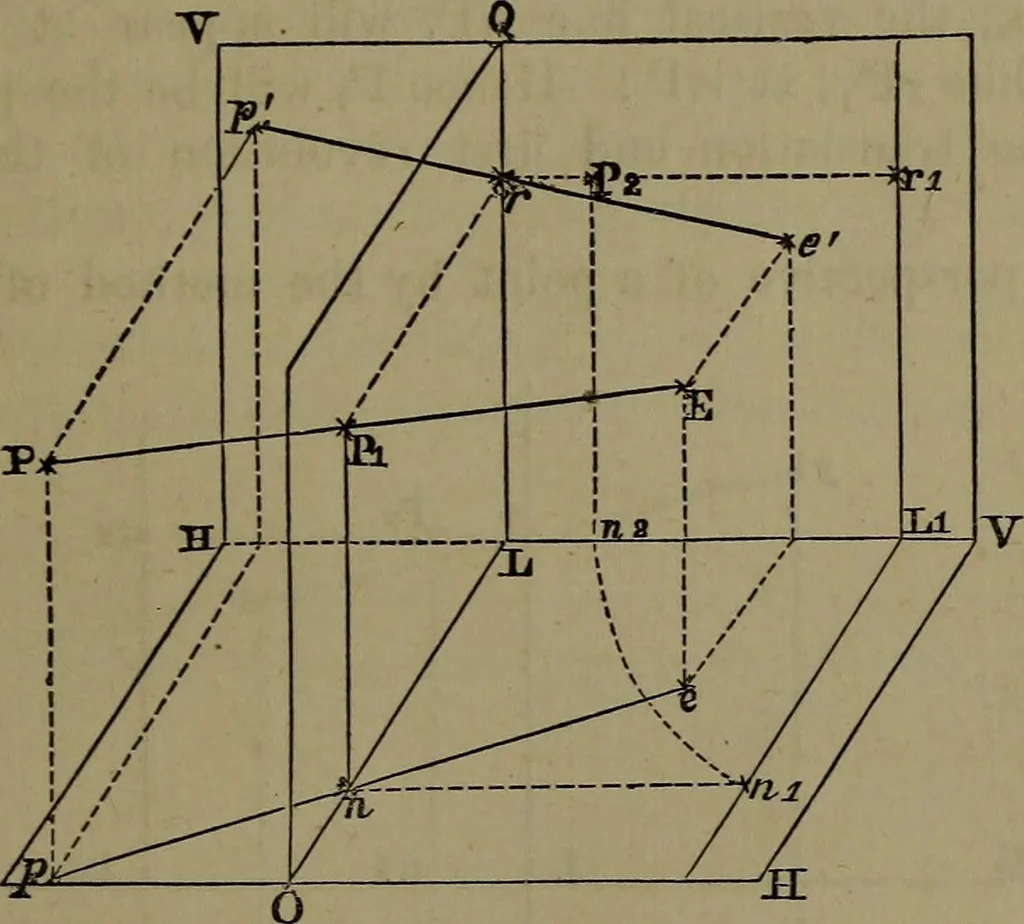

Ql Z^/ • 5 • Fig. 19. § II. Second Method. Use of three Planes, 72. The confusion of the diagrams, arising from the confoundingtogether of the perspective with either or both of the projections REMOVAL OF PRACTICAL DIFFICULTIES. 36 of the given object, may be still further avoided by making… … Fig. 20. OHH is the horizontal plane of projection ; VV, the verticalplane of projection, and OLQ the perspective plane. P is a pointin space, whose perspective is to be found, p represents its hori-zontal, and jt? its vertical projection. E is the position of the eye,e its horizontal, and e its…
