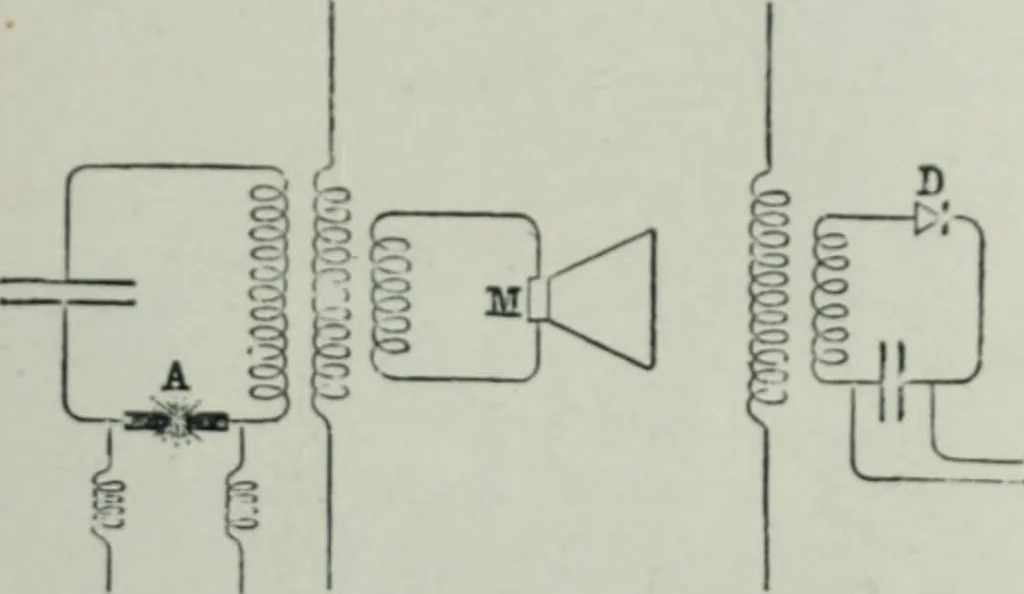

e microphone may ho inserted as a shunt to the .secondarycircuit of the oscillation transformer connecting; the antenna to thecondenser circuit, so that the current into the antenna is more orless shunted to earth (see Fig. G). Finally, the microphone maybe inserted in the earth connection of the… … \tCl)T \ntfroi\ictd Jroin •• Electrical Bngxneerino of .\pHl 13, V.m, by pf, mission of the Proprittort. Fig, 8.—Scheme of Circuits of Transmitter and Receiver forRadiotelephony. Another plan that has been suggested is to employ a condensertelephone consisting of two plates of metal near together,…
