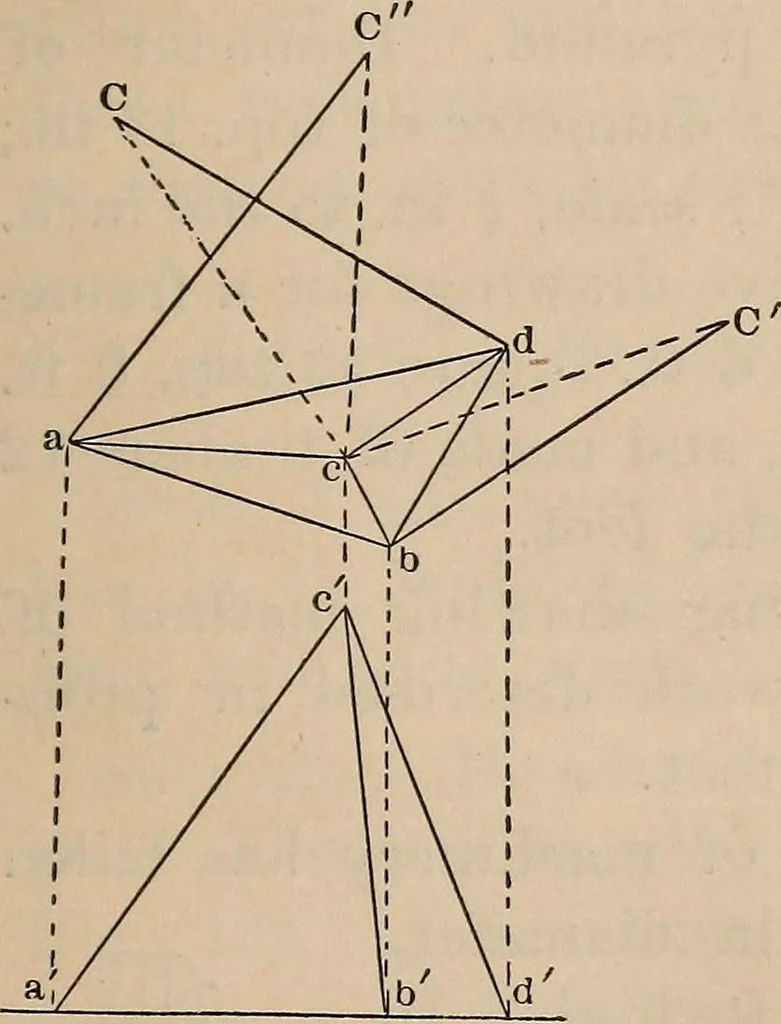

of thehip. (Fig. 129, a). Thisline will be the hypoth-enuse of a right-angledtriangle, of which theother sides are, respect-ively, the plan of the hipand the pitch of thepyramid. It, therefore,represents the true length of the hip, and aC, eC,and dC are the true lengths of the hips AC, BC,and DC… … Fig. 129, a. 108 MECHANICAL DRAWING.
