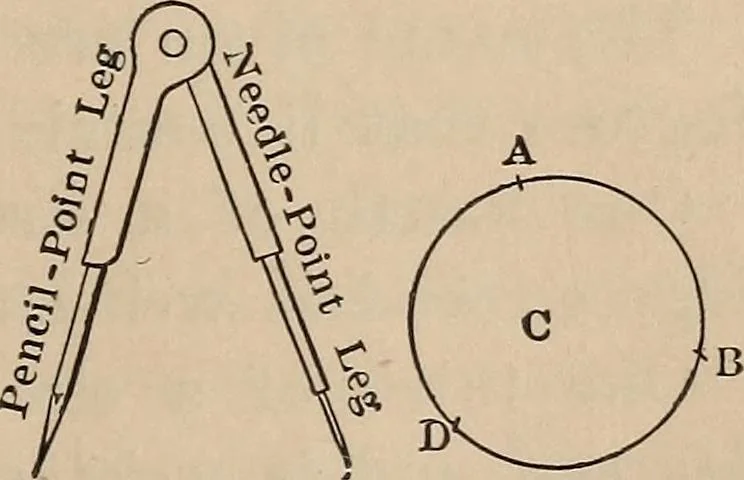

t of which isequally distant from a point within it called its center. A Diameter of a circle is a straight line joiningtwo points in the circumference, and passing throughthe center. Every circle may have an infinite num-ber of diameters. A Radius is a line extending from the center tothe… … Fig. 9. Fig. 10. 16 MECHANICAL DRAWING. point in the position of the center C, and holdingthe needle-point leg as nearly upright as possible,revolve the pencil leg about it, so that the pencilshall describe a continuous line ABD, every part ofwhich is equally distant from its center C. Prob.…
