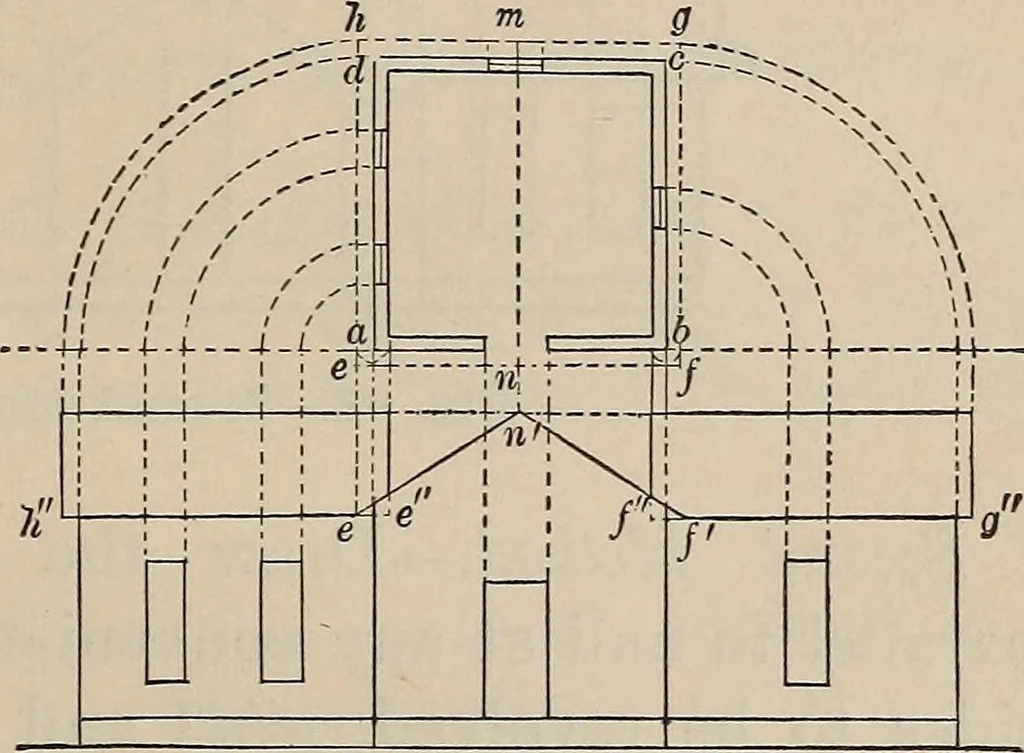

use 19 ft. sq., 16 :^ ^ ft. high, includingfoundation, 2 ft.;gable roof, 6 ft.pitch and 1 ft. pro-jection. Door inmiddle of one end4 ft. wide and 9 ft.high. Windows, 2 ft. 9 in. X 8 ft,, Fig- 97.-First Method. 2 ft. 3 in. from the floor, one in the middle of endopposite the door, one in the middle… … 76 MECHANICAL DRAWING. struct the elevations as in the preceding problems,and it will be seen that because the roof projectsbeyond the body of the house, the gable and theeaves of the front and side elevations lap over oneanother (see first method, Fig. 97). This tends toconfound two different…
