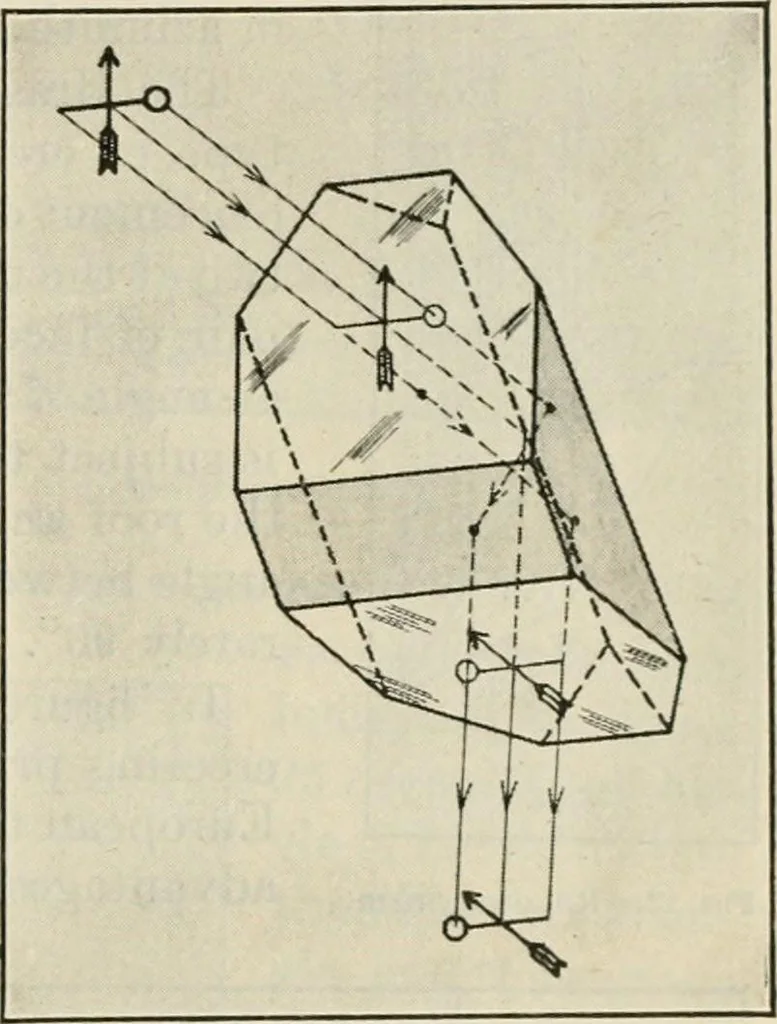

two faces form the roof of the prism. Thelower prism of the panoramic sight and the prism used in the right-angle telescope of antiaircraft fire-control apparatus are of this type.This prism when inserted in a telescopic system bends the axis of thetelescope through 90° and also erects the image.… … Fig. 20.—Second type of Porro system. Fig. 21.—Right angle prism with roof. is not reverted. This prism is one of the most difficult to manu-facture, as the angle between the two inclined faces can not differfrom 90° by more than a few seconds if the prism is to function satis-factorily. The angle…
