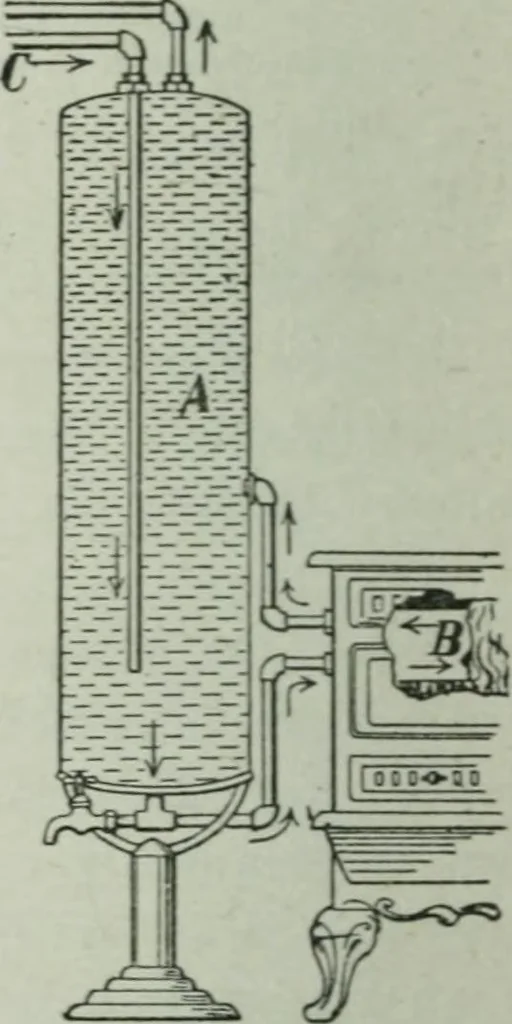

Fig. 173—Illustrationof the principle ofheating water byconvection cur-rents. Fig. 17-4 shows the actual connections in akitchen outfit. The cold water supply pipe C isconnected with a tank in the attic or with thewater-works service pipes. The hot water isdrawn off through the pipe D. The… … Fig. 174.—Connection in akitchen water heater. Ais the hot-water tank andB is the water-front of thestove. The arrows showthe direction in which thewater moves. HOT-WATER AND STEAM HEATING 157 184. Hot-Water Heating. Hot-water s.ystems of heating dwellinghouses also depend on convection currents…
