Merchant, F. W. (Francis Walter), 1855-1937, Chant, Clarence Augustus, 1865-1956 · Toronto : Copp Clark · leaf 93

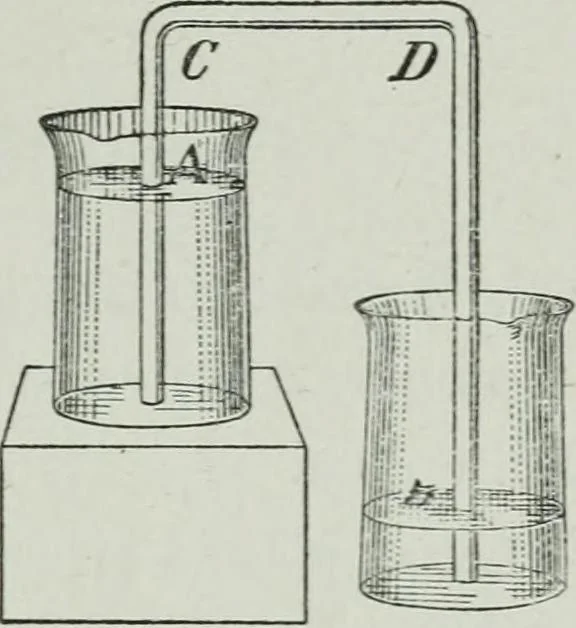

Fig. 100. I SIPHON 85 … Fig. 101.—The siphon. To understand the cause of the flow consider Fig. 101.The pressure at A tending to move thewater in the siphon in the direction AG= the atmospheric pressure — the pres-sure due to the weight of the waterin AC;and the pressure at B tending to move thewater in the siphon in the…
Physics
