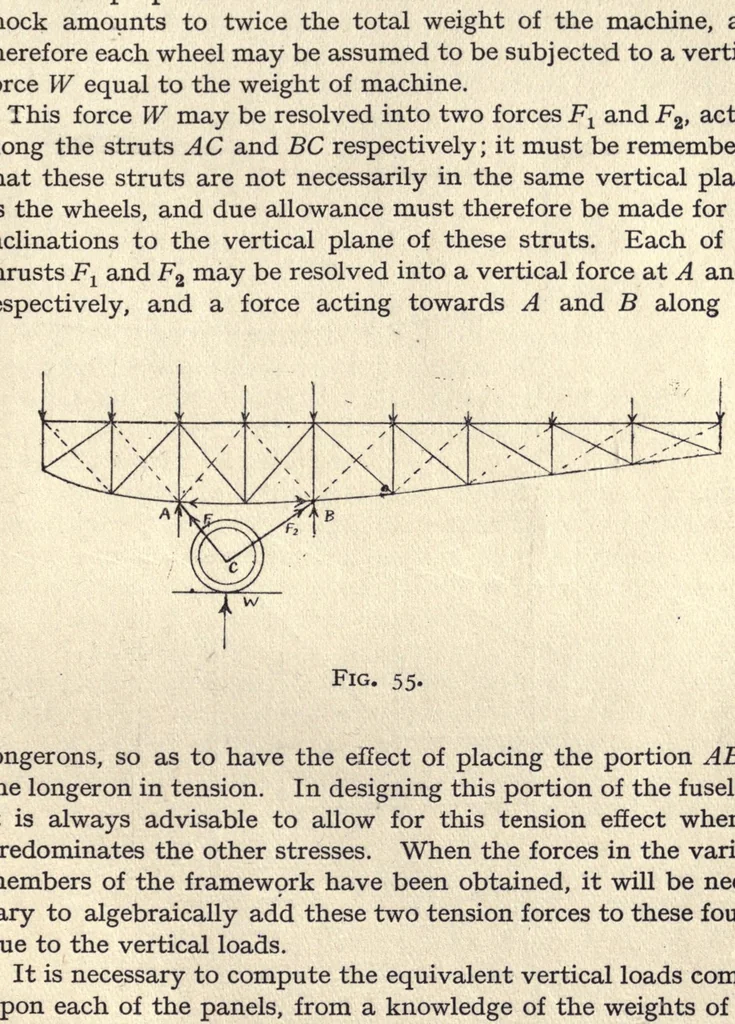

PRINCIPLES OF AEROPLANE DESIGN io6 gravity over the centre of wheel. Having considered the tail portion of the fuselage already, it will here only be necessary to deal with the overhung front portion and that portion between the struts. The force polygon for the tail portion, and that for the front … FIG. 56. — STRESSES IN FRONT PORTION OF FUSELAGE. and centre portion, should then be combined, and the one will be found to check the accuracy of the other. Fig. 56 represents the force polygon for the front and centre portion of the fuselage, and the lower diagram shows graphically the forces in…
