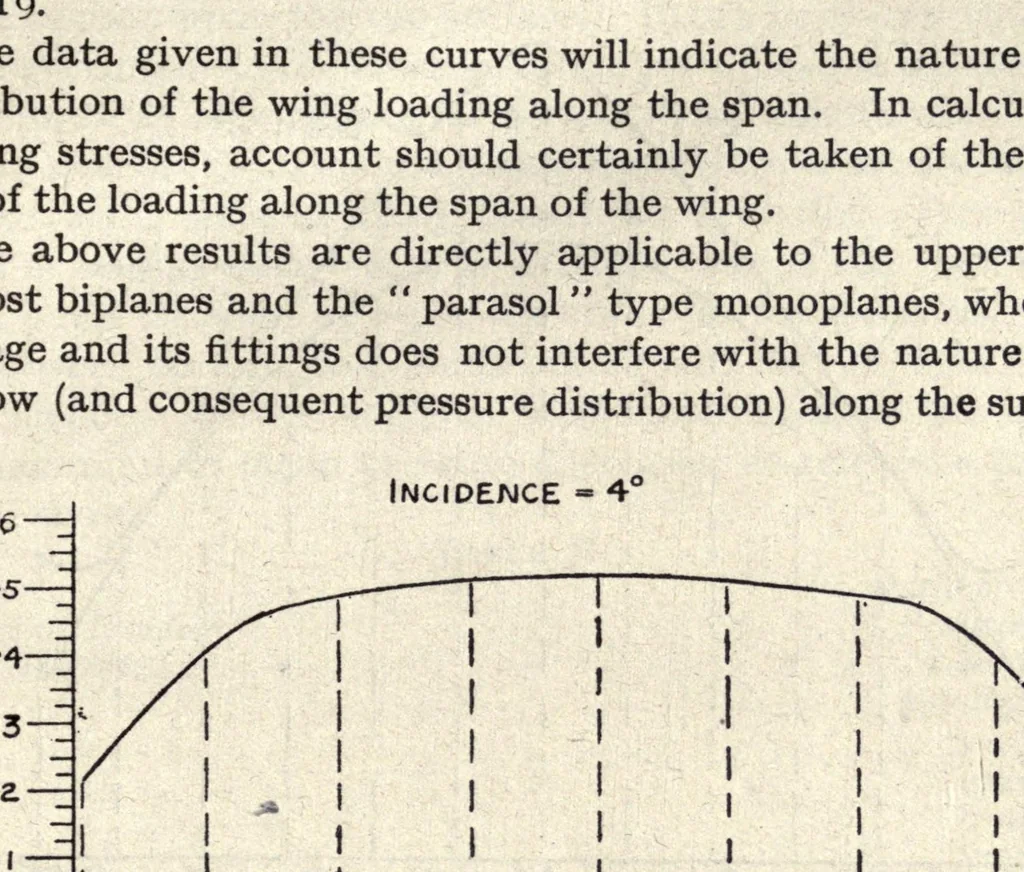

PRINCIPLES OF AEROPLANE DESIGN 44 The wing loading per unit area for any given section along Ihe direction of the line of flight also varies along the chord of wing ; this will be apparent from the pressure distribution diagrams shown in Fig. 20 for Eiffel's Bleriot XIII. A. At sections near … FE D D EF SPAN FIG. 19. — LOAD VARIATION ALONG THE SPAN OF AN AEROFOIL. 20. — DIAGRAM OF PRESSURE DISTRIBUTION FIG. OVER AN AEROFOIL. the centre of the span the point of greatest intensity of loading is near the leading edge and upon the top surface, usually situated be- tween the leading edge and…
