Elementary projection drawing. Theory and practice. For preparatory and higher scientific schools, industrial and normal classes; and the self-instruction of teachers, inventors, draftsmen, and artisans. In six divisions .. (1880)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York, J. Wiley & sons · leaf 198

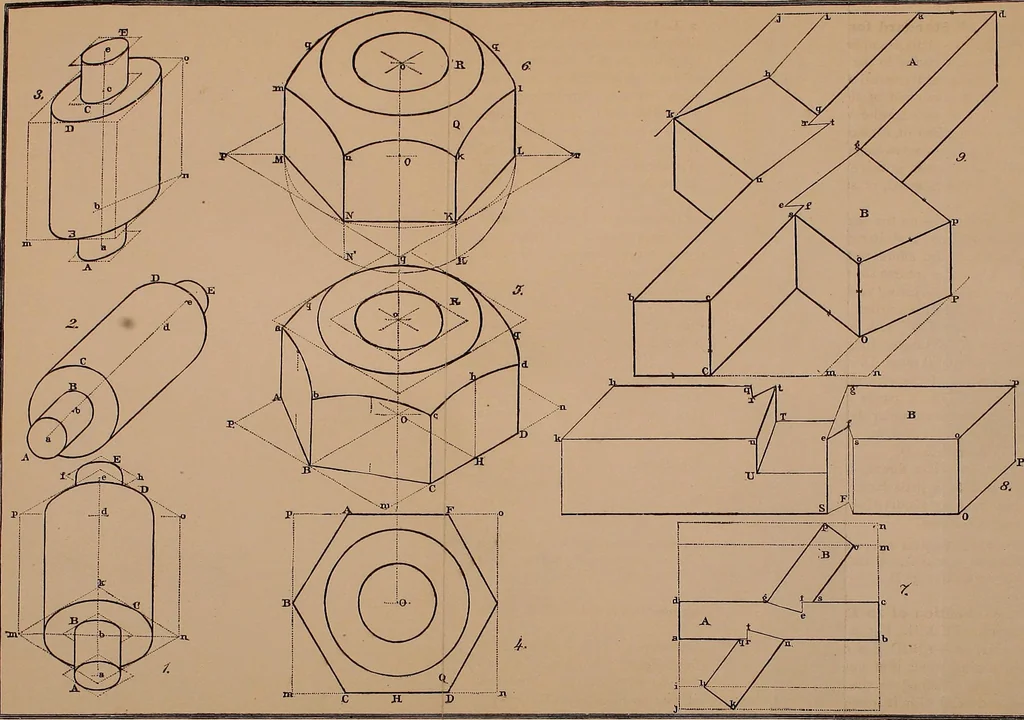

tangent outlines. Exercise.—1. Vary the design by making the arcs from B and D eachless than 60°, and so that C shall be on the radius through the lowerlimit of the arc through D. Ex. 3. Section of an Engine-bed, Guides, and theirSupport. PL XVI., Fig. 2. Description.—ABOD is a cross-section of the… … SUPPORTERS AND CRANK MOTIONS. 119 support the guide-bars GGr, between which slides the cross-head,not shown, to which the outer end of the piston-rod is fastened,as may be understood from the equivalent parts of nearly anylocomotive or stationary engine. Construction.—Only the principal…
