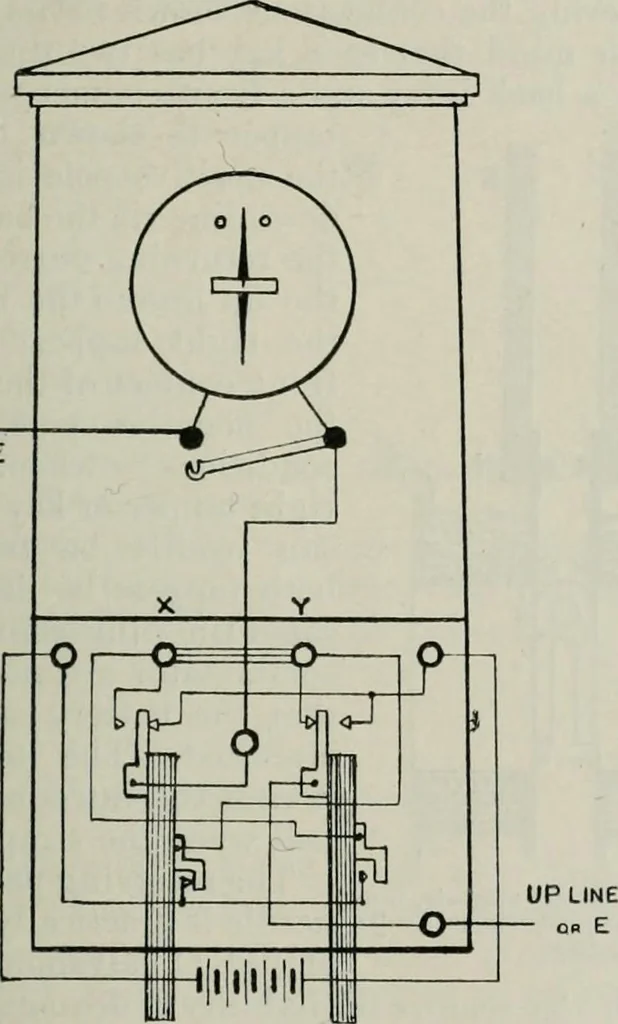

{A and B,Fig. 58) separated by boxwood or ebonite. To .1 thenegative j)ole of the battery is joined, while the positive TELEGRAPH INtiTRVMENTS 79 pole is connected to /). /S and Nj are two steel springseach in connection ^vitll the brass pieces h and /jj, and thesprings are normally in contact by… … Fig. 5,!.—Connections olsingle neeille, left-hand lajiper depiussed. and h]. A metal pin, p, is fixed on A, and a similarprojection 2^1 is fitted beneath B. When the lumdle is atrest these projections remain between the springs andbrass pieces without touching either. The effect of themovement of…
