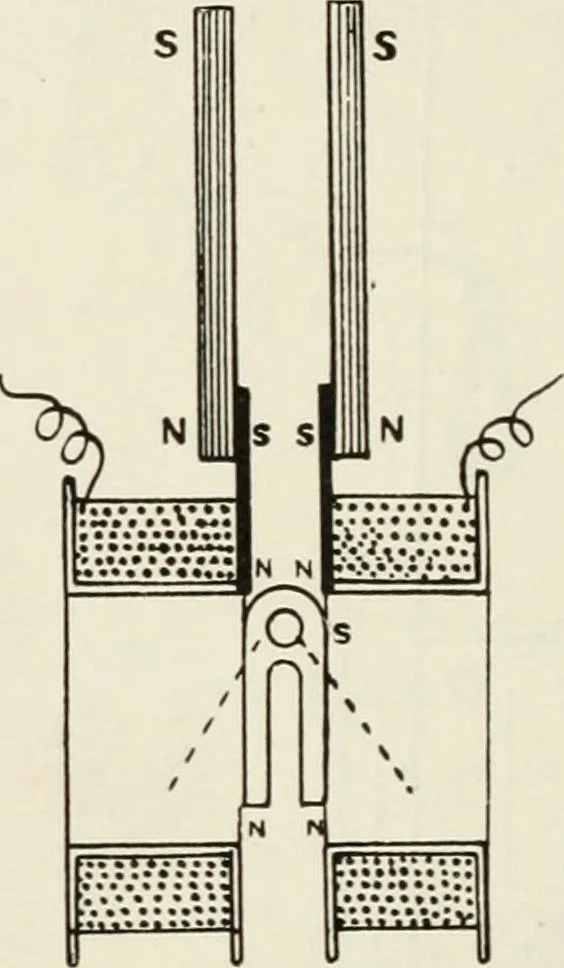

used, Mr. Yarley designed an arrange-ment of bar magnets and a soft iron needle which OAved itspolarity to their influence. This form of induced needleis illustrated in Fig. CO. N S and N-^ S-^ are two barmagnets Avith like poles adjacent to AAhich soft iron stripsare fixed ; these, j)assing… … TELEGRA PH INi^TM UMENTS 81 paddle-sliaped needle of soft iron mu^neticully dividedby a layer of sj^elter (zinc). Tlie similar poles of themagnets are adjacent, and tliey are placed above andbelow the soft iron axle as shown in Fig. 01. l?y induc-tion the lower end of theneedle becomes north…
