Elementary treatise on physics experimental and applied for the use of colleges and schools (1890)
Ganot, A. (Adolphe), 1804-1887, Atkinson, E. (Edmund) · New York : W. Wood · leaf 197

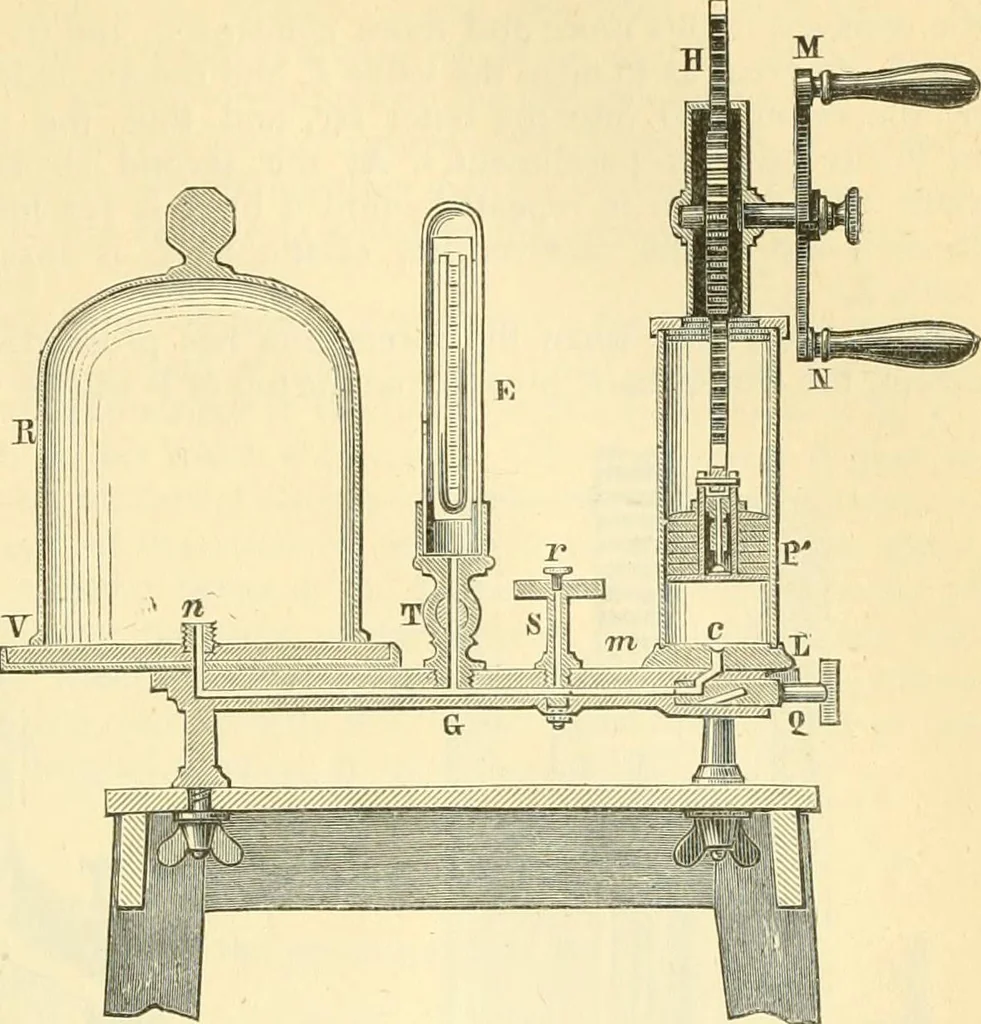

ith the barrels. When the receiver has beenexhausted, S is turned through a quarter, and the vacuum is thus. preserved.Air can be admitted by opening a screw r, at the top of a channel in thestopcock itself. The piston P^ being at the bottom of the barrel (fig. 179), as thehandle is worked, the… … Fig. 177. i8o On Gases. [200- nection with the receiver R, the air in this expands and fills both the receiverand the barrel. When P begins to descend, the valve s is closed by thedescent of the rod a, the rarefied air in the barrel can no longer return tothe receiver, it gets more and more…
