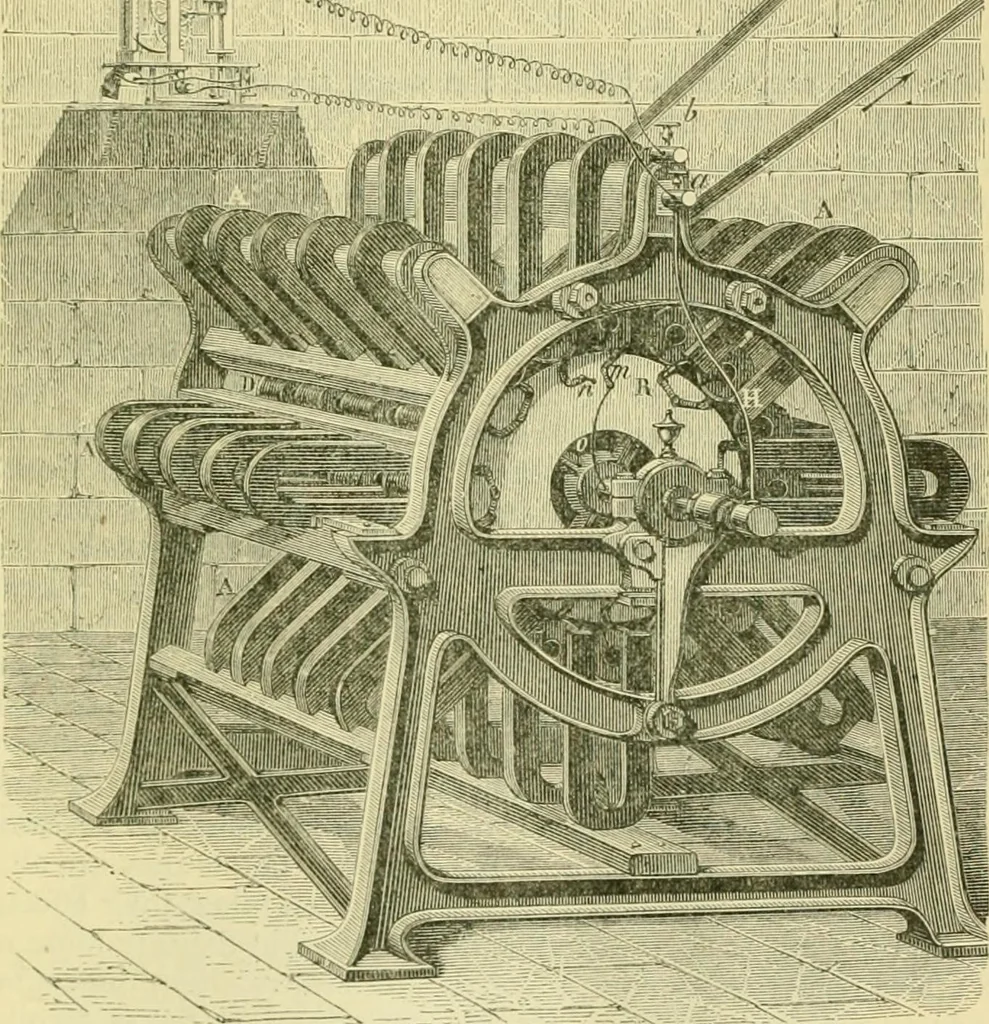

MacJiine. 903 on the same wheel, but on all four, all wires are connected with one another.For this purpose the bobbins are joined, as shown in fig. 883 ; on the firstwheel the twelve wires of the first coil, x, are connected on a piece ofmahogany fixed on the front face of the wheel with a plate… … Fig. 881. soldered to a plate indicated by a dotted line which connects them with thecoilj/; from this they are connected with the coil s by a plate, /, and so on,for the coils /, tt, . . . up to the last, v. The wires of this coil terminate inaplate, 11, which traverses the first wheel, and is…
