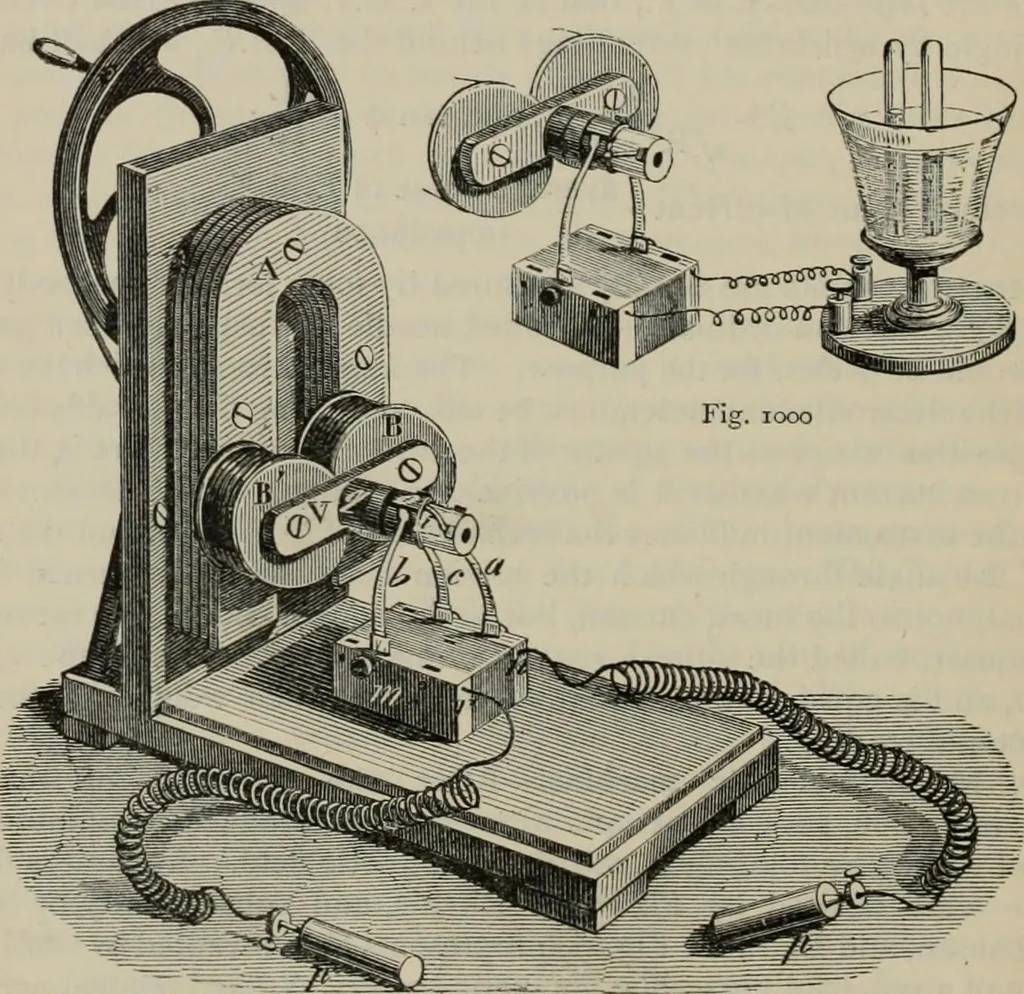

y A, the lines of force leaving this pole pass through theair-gap, the core of B, the yoke V, the core of B, and the air-gap to thesouth pole of A, and then through the magnet A to the starting-point, socompleting the magnetic circuit. The electromagnet in this position con-tains more lines of… … Fig. 999 this position is passed the number of lines begins to increase, but in theopposite direction, and reaches a maximum when another Cjuarter turn hasbeen made. But a little consideration will show that the direction of theelectromotive force in the wire on the bobbins is the same throughout…
