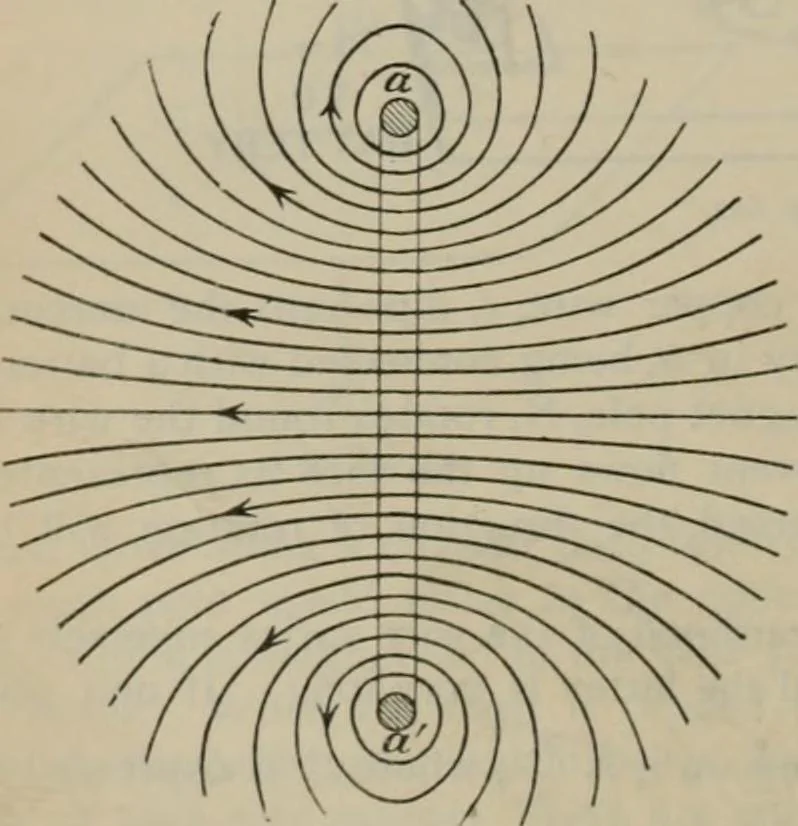

.The lines of force in the magneticfield due to the straight horizontalcurrent are vertical circles perpendi-cular to the plane of the paper. Thered pole of the needle is urged alongthe line of force which passes throughit in one direction : the blue pole similarly in the opposite direction. Butfor… … Fig. 824 -837] Tangent Galvanometer 857 836. Magfnetic field due to a current in a circular wire.—In the case inwhich the wire is not straight the lines offeree will not be exact circles. Ifthe conductor is a circular ring the system of lines will be as shown infig. 824, in which a and a are…
