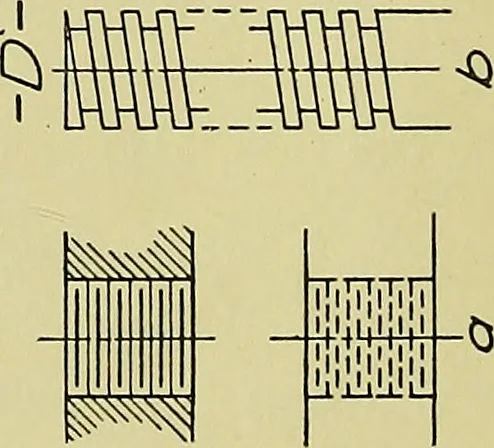

MECHANICAL DRAWING AND DRAFTING ROOM PRACTICE 89 2. Method of dimensioning a series of holes equally spacedaround a circle. Note that the holes are spaced each side ofthe vertical and horizontal center Hues, and not on these centerlines. Group C shows conventional uses of broken or dashed lines…
