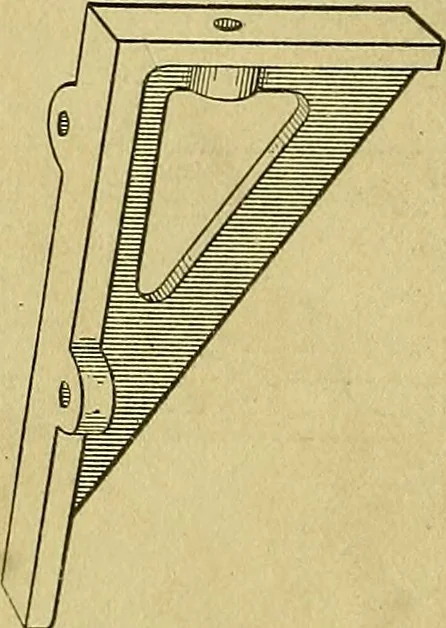

Fig. 86. — Perspective of Lathe Bed. 83. Drawing C-103. A mechanical detail drawing (seeFig. 88) is to be made of the Lathe Bed (see Fig. 86) and theBracket for the shelf (see Fig. 87), also theStandard Parts belonging to the aboveparts are to be listed in the Bill of Material.Following is a… … Part tt3-Part tt4 Bracket for shelf. Fig. 87. — Perspective ofShelf Bracket. Part if5—f X lY Square-head Cap Screw.Before starting this exercise read and pre-pare for examination on paragraphs as follows: MECHANICAL DRAWING AND DRAFTING ROOM PRACTICE 125
