Blessing, George F. (George Frederick), 1875-1921, Darling, Lewis A. (Lewis Andrew) · New York, J. Wiley & sons; [etc., etc.] · leaf 146

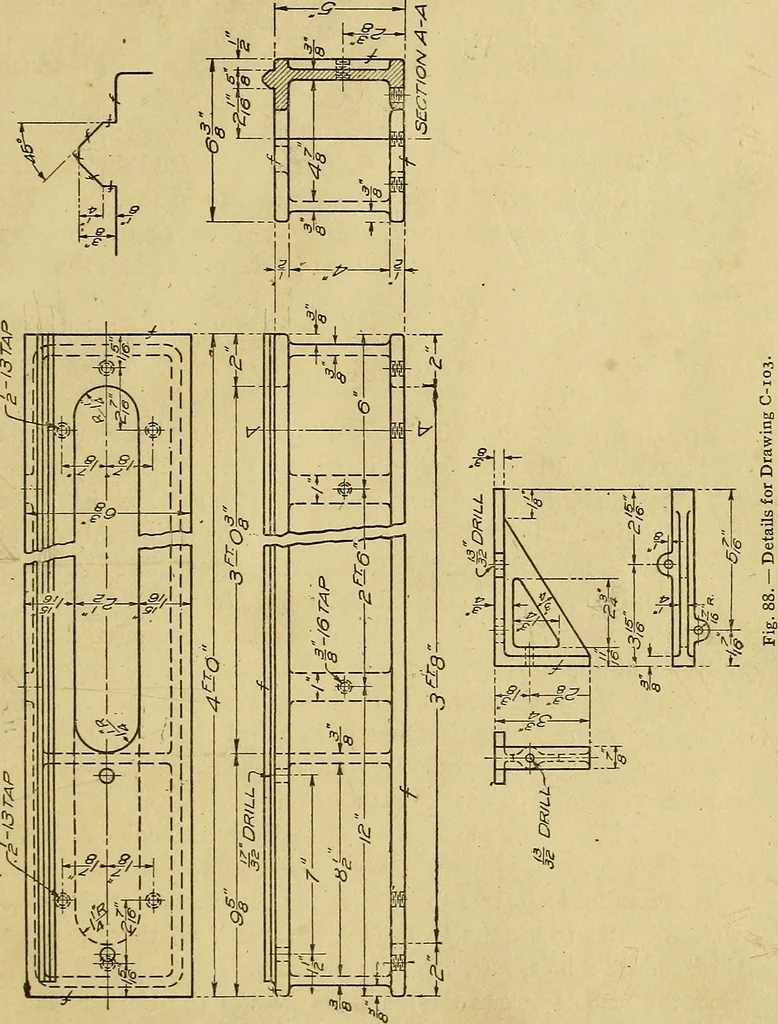

Part tt3-Part tt4 Bracket for shelf. Fig. 87. — Perspective ofShelf Bracket. Part if5—f X lY Square-head Cap Screw.Before starting this exercise read and pre-pare for examination on paragraphs as follows: MECHANICAL DRAWING AND DRAFTING ROOM PRACTICE 125 … 126 ELEMENTS OF DRAWING Introductory, page 71, § 52. — Conventional Lines, page 76,§ 54. — Sectioning and Sectional Views, page 79, § 55. — Num-ber and Arrangement of Views, page 83, § 56.—Detail Draw-ings, page 85, § 57. — Indicating the Finish of Surfaces, page98, § 64.— Part Numbers on a…
Mechanical drawing
