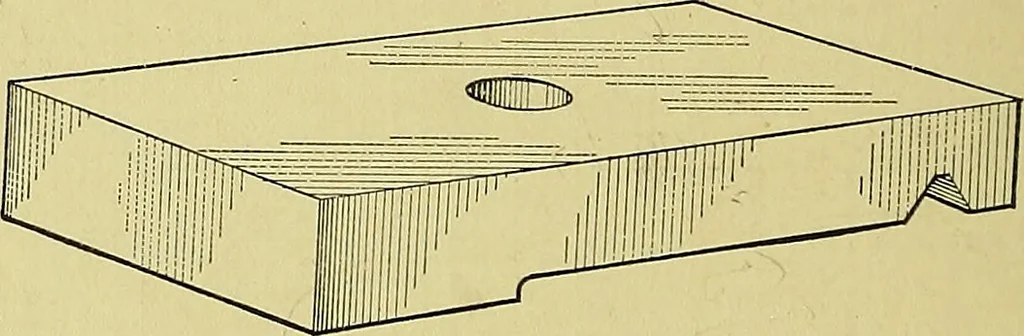

Fig. III. -Perspective of TailstockClamp Strip. 106. Sheet 1^7. Make sketchesof the Tool Rest Support Slide,(see Fig. 112) and of Clamp for113). This sheet is to be made … Fig. 112. — Perspective of Tool Rest Support Slide. Tailstock Spindle (see Fig.directly from these parts: Before starting the work read, and beprepared for exam-ination on, para-graphs, as follows: Projection andProjected Views, page 73, § 53. —Drawing to Scale, page 90, § 60. —Notes on aDrawing,…
