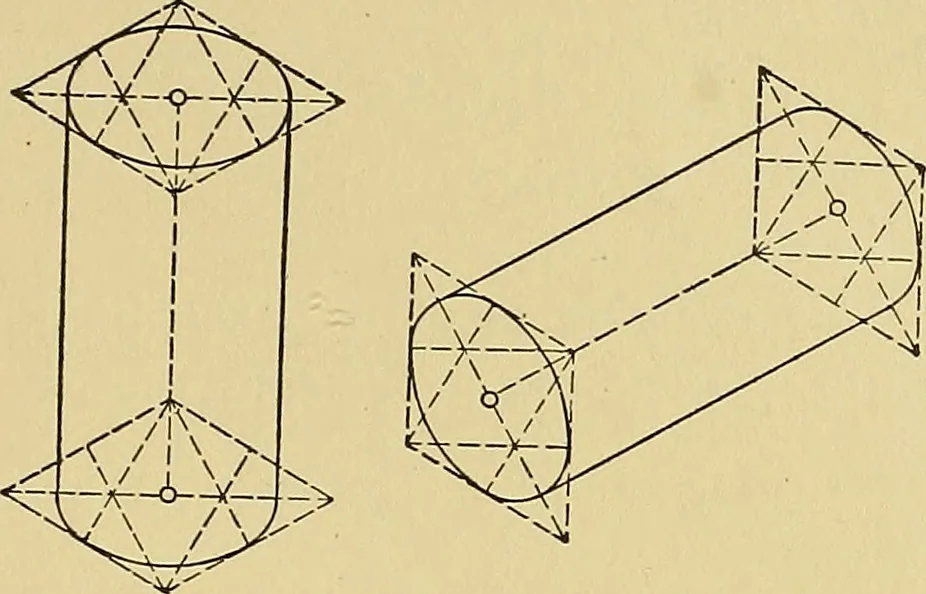

C DRAWING AND SKETCHING 163 125. Isometric of a Cylinder. Make a drawing of a cubethat will just enclose thecylinder, then draw theellipse within the rhom-bus that represents thetop of the cube See Fig.129. Likewise constructthe base of the cube, andconnect the top and thebase with tangent linesas… … Fig. 129. —Isometric Drawings of Cylinder in DiflEerentPositions.
