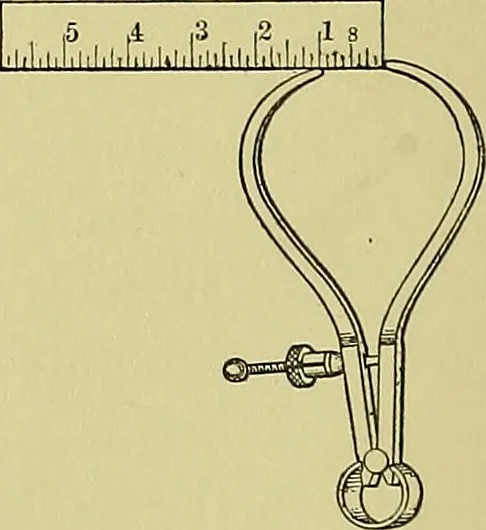

he piecebeing measured in such a manner that thedimension desired will be a line which isthe shortest distance between the points ofthe calipers. For example, to find thediameter of a cylinder, the calipers shouldbe held in a plane perpendicular to the axisof the cylinder, and then adjusted… … Fig. 36. — Reading theOutside Calipers. DRAWING INSTRUMENTS AND MATERIALS 33
