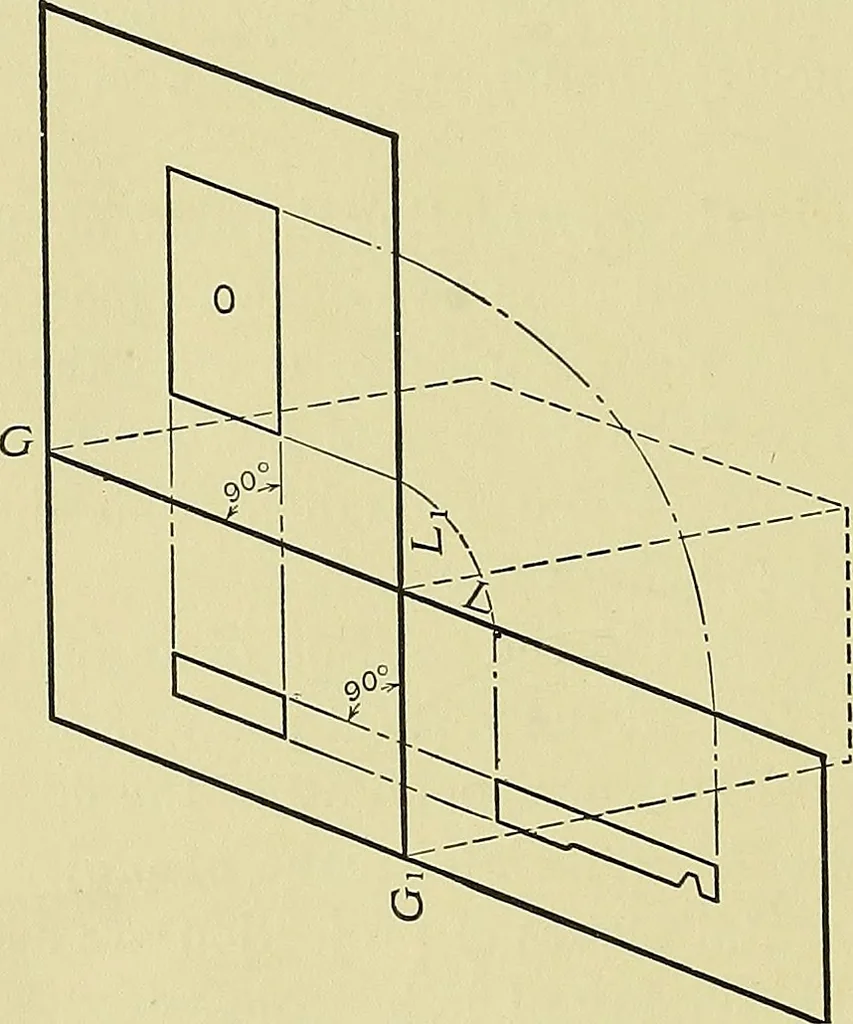

Fig. 50. — Illustrating the Method of Orthographic Projectionby the Use of Transparent Planes. … :k] (a) — Showing the Plan, Front and SideViews Brought into a Single Plane. (b) — Arrangement of ViewsOrdinarily Used in Making a Drawing. Fig. SI. — Usual Relation of Views on a Flat Surface. parent planes at right angles in space and the drawing paperwhich is in a single plane. It is seen that…
