Davies, Charles, 1798-1876 · New York and Chicago, A. S. Barnes and company · leaf 203

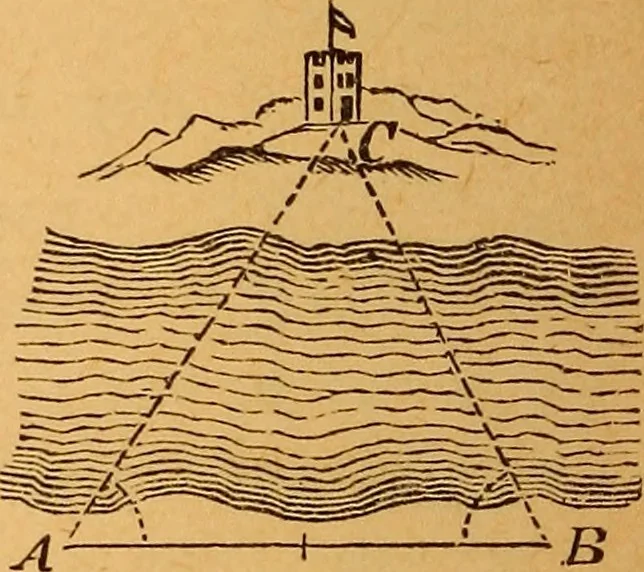

ANCES. PROBLEM I. To determine the horizontal distance to a point which is inac-cessible by reason of an intervening river. Let <J be the point. Measurealong the bank of the river s hori-zontal base line AB, and select thestations A and B, in such a mannerthat each can be seen from the other,and… … The angle C = 180° — {A + B) = 57° 34 To find the distance BC. As sin C 57° 34 ar. comp. 0.073649 i sin A 57° 35 ... 9.926431 : : AB GOO .... 2.778151 BC 600.11 yards.To find the distance AC, 2.778231 As sin 0 57° 34 ar. comp. 0.073649 siD B 64° 51 ... 9.956744 ; : AB 600 . ; 2.778151 AC 043.94…
Geometry · Plane trigonometry
