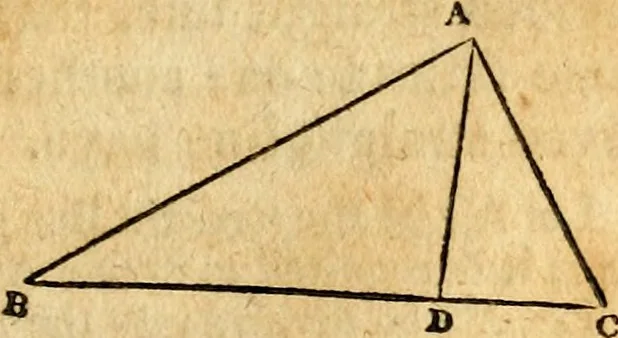

e whole triangle ABC, andto one another. Because the angle BAG is equal to the angle ADB, each of thembeing a right angle, and the angleat B common to the two trianglesABC, ABD; the remaining angleACB is equal to the remaining an-gle BAD (32. 1.): therefore thetriangle ABC is equiangular to… … lis ELEMENTS giilar anil similar to the triangle ABC: and the triangles ABD, ADC,being each equiangular and similar to ABC, are equiangular and simi-lar to one another. Therefore, in a right angled, &c. Q. E. D. Cor. From this it is manifest, that the perpendicular drawn, fromthe right angle of…
